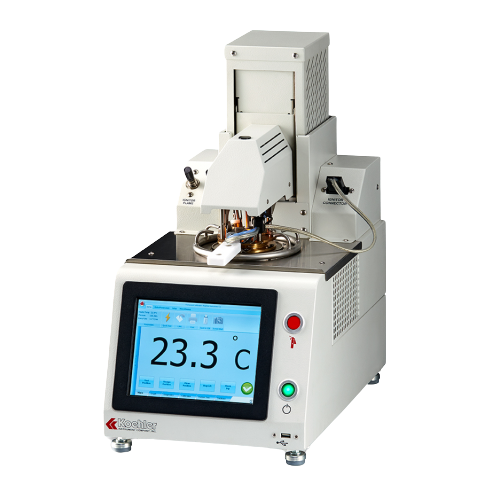

Koehler K71000 Automatic Pensky-Martens Closed Cup Flash Point Tester (~405°C)

For flash point determination of biodiesel, distillate fuels, new lubricating oils, residual fuel oils, cutback residua, used lubricating oils, mixtures of petroleum liquids with solids, petroleum liquids that tend to form a surface film during testing.

Specifications

- Conforms to the specifications of:

ASTM D93 Procedure A, B and C; IP 34; ISO 2719; DIN EN 22719; JIS K2265; NF M 07-019

- Detection system: Thermocouple and Ionization ring

- Temperature range: Ambient-405°C

- Heating rate: In accordance to ASTM D93 procedure A, B and C

- Stirring rate: 0 to 300±5 RPM

- Cycle time: 5 minutes as per rapid fan cooling system

- Ignition test frequency: User selectable on per method basis

- Communication: LIMS Connectivity via Ethernet and RS 232 ports. Two (2) USB ports (1 – Frontm 2 – Back)

- Security: Three (3) level password protection

- Safety: Fire prevention, detection, and suppression systems standard

Electrical requirements: 110-240V 50/60Hz

Dimensions

- wxdxh,in.(cm): 10 7/8x17.5x26 (27.63x44.45x66.04)

- Net weight: 60 lbs (27.22kg)

Shipping information

- Shipping weight:74 lbs (33.6kg)

- Dimensions: 25x19x29 in. (63.5x48.3x73.7cm)
