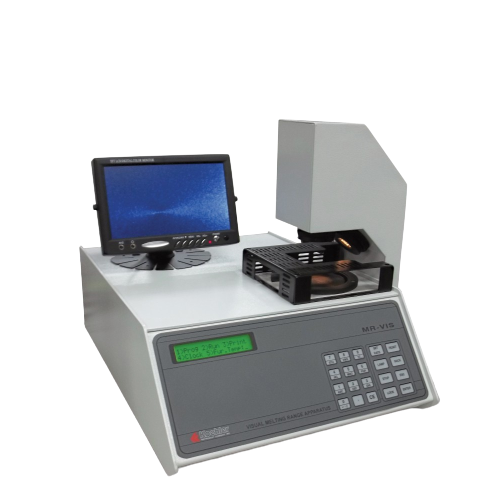

Koehler K90190 自动熔点测定仪 (+5~ 315°C)

The Automatic Melting Point Apparatus is the latest technology for microprocessor-based determinations of melting point ranges of crystalline, powdered and polymeric materials, and is used to assess sample purity.

Specifications:

- Conforms to the specifications of: BP Appendix 5-Method 6; GLP

Visual image: 10x magnified displayed on monitor

- Temperature range: ambient + 5 to 315°C

- Heating rates: 0.2, 0.5, 1.0, 2.0, 3.0, 6.0, 12.0°C/min

- Temperature readability: 0.1°C

- Cooling time: 20 minutes (300°C to ambient)

- Temperature accuracy: ±0.5°C (ambient + 5 to 200°C)

 ±0.8°C (200 to 315°C)

- Sample size: 5mg (approximately)

Test storage: Up to 20 tests with parameters

Electrical requirements: 220V, 50Hz, Single Phase

Dimensions:

- lxwxh,in.(cm) Main Unit: 161⁄2x121⁄4x13 (42x31x33)

                        Monitor: 8x51⁄2x51⁄2 (20x14x14)

- Net weight: 25 lbs (11.3 kg)

Shipping information:

- Shipping weight: 30 lbs (13.6kg)

- Dimensions: 24x20x18 in. (61.0x50.8x45.7cm)

Additional accessories:

- K90100-1 Glass slides (pack of 500)

- K90100-2 Cover slips (pack of 1000)

- K90100-3 Sampling jig
