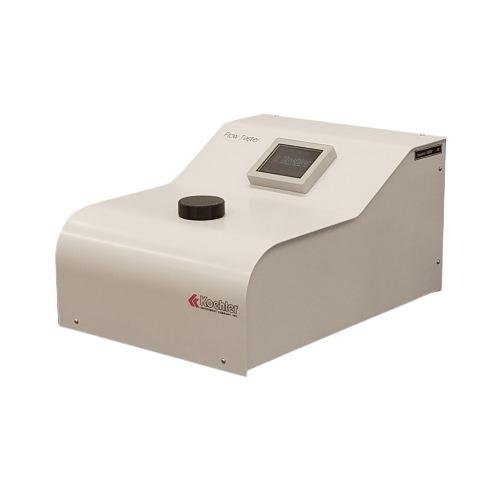

Koehler K95300 低温油脂流动测试仪 (0-3.000 mBar)

K95300 has been developed for testing lubricating greases in low temperature environments.

Specifications

- Conforms to the specifications of: DIN 51805

- Pressure range: 0 to 3.000 mBar

- Pressure resolution: <1 mBar

- Temperature range: ambient to -50°C

- Temperature resolution: <1°C

- PLC: Touch PLC

- Internal generated air pressure

- Interface: Ethernet

Electrical requirements

- Voltage: 110-230V 50/60Hz

- Power: 350W Max.

Dimensions

- LxWxH,in.(cm): 17.3x12.6x9 (44x32x23)

- Net weight: 55 lbs (25kg)


Included accessories

- Basic Machine

- Multi Range Power Supply

- PLC and HMI Software

- 1 Testing Sleeve

- 3 Unloading Containers

- Tooling Set

- Documentation
