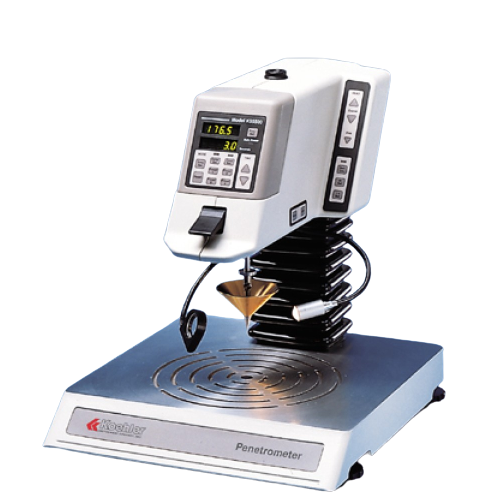

Koehler K95590-00000 数显透度计 (0-62mm)

Penetration tests are performed on petroleum products to determine consistency and shear stability (lubricating greases) for design, quality control and identification purposes.

Specifications

- Conforms to the specifications of: ASTM D5, D217, D937, D1321, D1403, D2884, D4950, D5329; IP 49, 50, 179, 310; ISO 2137; DIN 51579, 51580, 51804; FTM 791-311, 791-312, 791-313; AOCS Cc 16-60; AACC 58-14; NFT 60-119, 60-123, 60-132, 66-004

- Penetration range: 0-62.0mm (0-620 penetration scale) in 1⁄10mm or 1⁄100mm

- Penetration interval: Operator variable from 0.1 to 9999.9 seconds with automatic repeat function and 5.0 second default

Electrical requirements: 220-240V 50/60Hz

Dimensions

- lxwxh,in.(cm): Base: 12 1/2 x 14  (31.7x35.6)

                         Overall: 12 1/2 x 14 x 18 (31.7x35.6x45.7)

- Net weight: 21 lbs (9.6kg)

Shipping information

- Shipping weight: 28 lbs (12.7kg)

- Dimensions: 19x18x10 in. (48.3x45.8x25.4cm)

Included accessories

- Standard Plunger, 47.5g

- Weights, 50 and 100g

Detail

Datasheet


Manual
