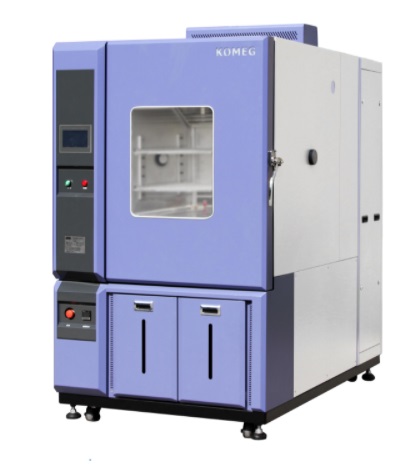

KOMEG KMH-100R Temperature And Humidity Test Chamber (-20℃~150℃,20 ~ 98% R.H, 100L)
制造商: KOMEG Model: KMH-100R 来源: China 保障: 12 Month - 报价要求
- 联系
Temp. range: -20℃~150℃
Interior size (WxHxDmm): 500x500x400
Exterior size (WxHxDmm): 600x1650x1320
Power(KW): about 6kW
Weight(KG):
Humidity uniformity: ±3.0%R.H (no load)
Heat up time: -20℃~+100℃,within 35 min (no load)
Pull down time: +20℃~-20℃, within 45 min (no load)
Standard accessories: Sight window*1, Lead hole (portΦ50mm)*2, Sample rack*2, Window lamp*1,
Control System: Balanced Temperature & Humidity Control System Refrigeration system
Air Cooled (Water Cooled Type is option)
Hermetic compressor, Single stage refrigeration system,
refrigerant(R404A)
Controller
Panel:7-inch LCD Touch panel, Chinese or English display selectable
Memory capacity : 269 group,13450 steps,
Humidity Range: 20~98%R.H
Humidity accuracy :
±3.0%RH(>75%RH)
±5.0%RH(≤75%RH)
Temp fluctuation ≤±0.5°C
Humidity fluctuation ±2.0%RH
Temp Uniformity ±2.0°C
Interior material: Stainless Steel Plate(SUS 304)
Exterior material: Stainless steel(SUS304)
Insulation material: Rigid polyurethane Foam and flame retardant grade B2
Ambient Temp: +5℃~+35℃
Wiring method: AC 380±10% 50Hz ,3 phase 4 wires + Ground Wires
