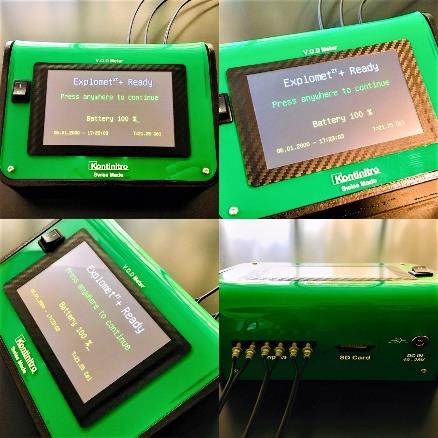

Kontinitro SA EXPLOMET 2T+ Velocity Of Detonation meter (15’000 [m/s])

Dimension:

Explomet 2T+

130 x 184 x 50-80 [mm]

Explorer Transport Case (OPTIONAL)

Outside Diameter: 360 x 460 x 160 [mm]

Weight:

- Explomet 2T: 0.85 [kg],

- Explomet 2T with case and material: 5.5 [kg

Autonomy:

- 11h hours on rechargeable Lithium Ion batteries 18650

- AC/DC adapter/charger for 220-230V/50Hz or 110V/60Hz or car charger/adapter or alligator clips.

- Average batteries charging time: 4 hours

Operating range:

- Distance between two optical fibers on the explosive: from 50 [mm] to 9999 [mm]

- Detonating velocity up to 15’000 [m/s]

- Time interval measurement: 10 nanoseconds to 10.7 seconds

Display:  95 x 55 [mm] Friendly LCD Color

Timers:

- 5 synchronous timers

- Operating temperature:-40 to 80°C

Accuracy: +/- 10 nanoseconds [ns]

Fiber Optic:

- ESKA™ SK-40 Simplex Plastic Optical Fiber Cable

- Core : 1mm, Outer : 2.2mm

Includes:

- PELI solid transport case

 - 6x14 prepared POF probes

- SD Card & SD Card/USB adapter

 - AC/DC adapter charger for 230V & universal car

charger

- Guide & manual in English

Detail

Datasheet and Manual
