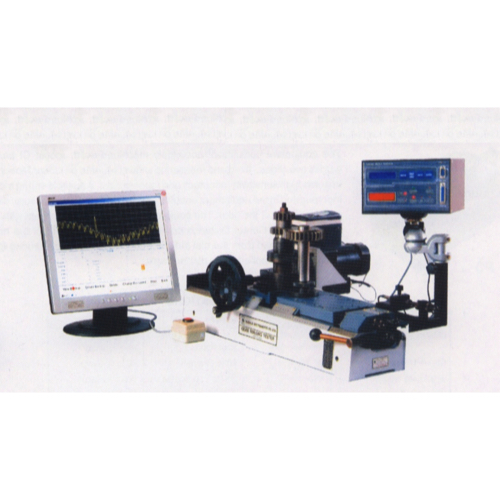

Kudale CGRT-PO 计算机齿轮滚动试验机 (250mm)

Overall Dimensions(Basic unit): L545 x W500 x H300 (mm approx)

Centre Distance: 35-200 mm

Shaft gear length: 250 mm

Weight of Basic equipment

a)without column: 50 kg. (approx.)

b)with column: 60 kg (approx.)

Measurement System: High Precision LVDT Probe L.C.001 mm Range 2 mm

Repeatability: Within 0.005 mm

Power Requirements: Single phase 230 V, 50 Hz (±10%)

Testing Speed: 3-15 RPM
