KVTESTER ZC-204B 变压器短路阻抗测试仪

  • 制造商: KVTESTER
    Model: ZC-204B
    来源: China
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

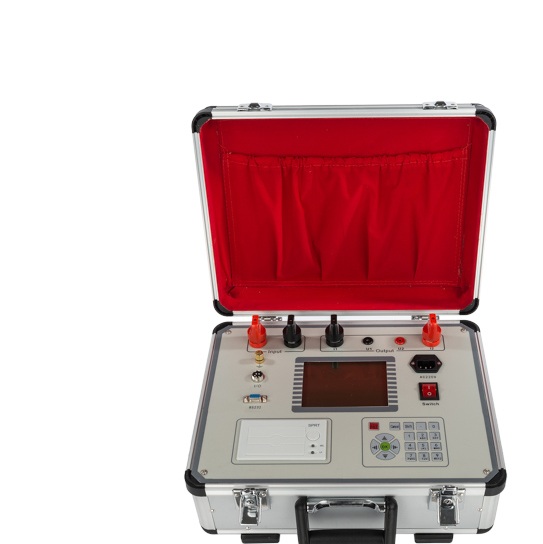

Transformer short-circuit impedance tester KVTESTER ZC-204B

Manufacturer: KVTESTER

Model: ZC-204B

Warranty: 12 months

Product Parameters

Measurement accuracy: Voltage, Current :0.2class

Power: Cosϕ>0.1:0.5 class; Cosϕ≤0.1:1.0class

Impedance: Cosϕ>0.1:0.5 class; Cosϕ≤0.1:1.0class

Voltage measurement range

AC 3V~300V

Internal power output range

Voltage: 0~250V Current: 0-10A

Current measurement range

AC 0.2A-20A

Working temperature

-10 °C~50 "°C

Working humidity

0~80%

Working power supply

AC 220V±10% 50Hz±1Hz

Outline dimension

360mm*220mm*150mm

Weight

5KG
