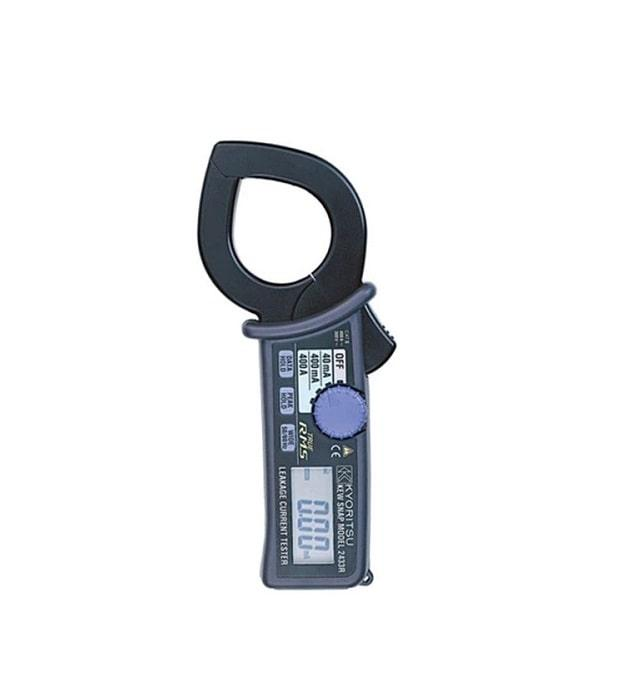

KYORITSU 2433R 数字式泄漏电流钳形表

  • 制造商: KYORITSU
    Model: 2433R
    来源: Japan
    保障: 12 month
    • 报价要求 报价要求
  • Price (exclude tax) 7,120,000 VND
    Price (include tax) 7,832,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




AC A (50/60Hz): 40/400mA/400A

±1%rdg±5dgt (40/400mA)

±1%rdg±5dgt (0 - 300A)

±2%rdg (300.1 - 399.9A)

AC A (WIDE): 40/400mA/400A

±1%rdg±5dgt [50/60Hz],

±2.5%rdg±10dgt [20Hz - 1kHz] (40/400mA)

±1%rdg±5dgt [50/60Hz],

±2.5%rdg±10dgt [40Hz - 1kHz] (0 - 300A)

±2%rdg [50/60Hz],

±5%rdg [40Hz - 1kHz] (300.1 - 399.9A)

Maximum circuit voltage:

600V AC/DC (between line/neutral)

300V AC/DC (against earth)

Conductor size: Ø40mm max.

Frequency response: 20Hz - 1kHz [40Hz - 1kHz:400A]

Effect of External Stray Magnetic Field: 10mA AC approx. in proximity to a 15mm-dia

conductor carrying 100A AC

Applicable standards: IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61010-2-032

Response Time: Approx. 2 seconds

Power source: Two R03 or equivalent (DC1.5V) batteries

Dimensions: 185(L) × 81(W) × 32(D)mm

Weight: 270g approx.

Included Accessories: 9052 (Carrying Case), R03 (1.5V) × 2, Instruction Manual
