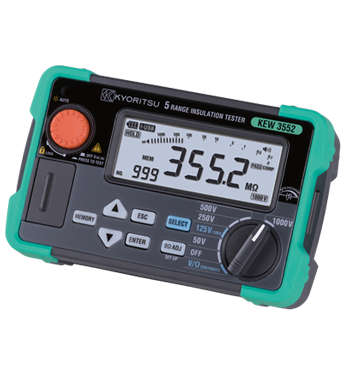

KYORITSU 3552 数字绝缘/电导氯测试仪 (40,00GΩ)

Test voltage: 50V/100V/125V/250V/500V/1000V

Measuring range(Auto range):

100.0MΩ(50V)

200.0MΩ(100V)

250.0MΩ(125V)

500.0MΩ(250V)

20.00GΩ(500V)

40.00GΩ(1000V)

Mid-scale value:

2MΩ(50V)

5MΩ(100V/125V)

10MΩ(250V)

100MΩ(500V)

200MΩ(1000V)

First effective measuring range:

0.100 ~ 10.00MΩ(50V)

0.100 ~ 20.00MΩ(100V)

0.100 ~ 25.00MΩ(125V)

0.100 ~ 50.0MΩ(250V)

0.100 ~ 500MΩ(500V)

0.100 ~ 1000MΩ(1000V)

Accuracy:±2%rdg ±2dgt

Second effective measuring ranges:

0.050 ~ 0.099MΩ(50V/100V/125V/250V/500V/1000V)

10.01 ~ 100.0MΩ(50V)

20.01 ~ 200.0MΩ(100V)

25.01 ~ 250.0MΩ(125V)

50.1 ~ 500MΩ(250V)

501 ~ 2000MΩ(500V)

1001 ~ 4000MΩ(1000V)

Accuracy: ±5%rdg (0.050 ~ 0.099MΩ: ±2%rdg±4dgt)

Rated current: 1.0 ~ 1.1mA

Output short circuit current: 1.5mA max


Ω / Continuty

Auto range: 40.00/400.0/4000Ω

Accuracy: ±2.5%rdg ±8dgt

Output voltage on open circuit: 5V(4~6.9V)

Output short circuit current: 200mA max


Ω / Continuty

Auto range: 40.00/400.0/4000Ω

Accuracy: ±2.5%rdg ±8dgt

Output voltage on open circuit: 5V(4~6.9V)

Output short circuit current: 200mA max


General

Applicable standards:

IEC61010 CATⅢ 600V/CAT IV 300V

IEC61557-1,2,4 IEC61326-1,-2-2 IEC60529(IP40)

Power source: LR6/R6(AA)(1.5V)x4

Communication interface: USB

Dimensions : 97(L) x 156(W) x 46(D) mm

Weight: 490g approx(including battery)

Included Accessories:

7260(Test leads with remote control switch)

7261A(Test leads with alligator clip)

8017A(Extension prod long)

9173(Carrying case)

9121(Shoulder strap)

LR6(AA)(1.5V)x4


Optional Accessories

7243A(L-shaped probe)

8016(Hook type prod)

9186A (Carrying case)

9187 (Cord case)

8212-USB(USB adaptor with "KEW Report (software)" )
