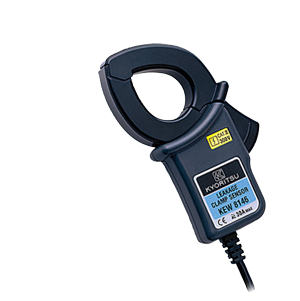

KYORITSU KEW 8146 KEW 钳形电流适配器 (Ø24mm, AC 30A)

Conductor size: Ø24mm

Rated current: AC 30A

Output voltage: AC 1500mV/30A (AC 50mV/A)

Accuracy:

0 - 15A

±1.0%rdg±0.1mV (50/60Hz)

±2.0%rdg±0.2mV (40Hz - 1kHz)

15 - 30A

±5.0%rdg (50/60Hz)

±10.0%rdg (45Hz - 1kHz)

Cable length: Approx. 2m

Output connector: MINI DIN 6pin

Output impedance: Approx. 90Ω

Applicable standards: IEC 61010-1:2001,

IEC 61010-2-032:2002,

CAT III 300V pollution degree 2

Operating temperature & humidity range: 0 - 50ºC, less than 85% RH (without condensation)

Dimensions: 100(L) x 60(W) x 26(D) mm

Weight: Approx.150g

Included Accessories: 9095 (Portable case), Instruction manual, Cable marker

Optional Accessories: 7146 (Banana Ø4 adjuster plug), 7185 (Extension Cable)
