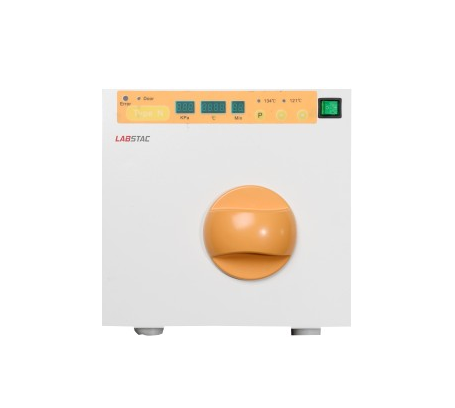

Labstac AM114 医用高压灭菌器(22升)

Capacity: 22 L

Sterilization Temperature: 121°C, 134°C

Sterilization Time: 4 min - 20 min

Times of Sterilization after filled up: Automatic water filling

Working Pressure: 0.11- 0.21 MPa

Maximum Working Pressure: 0.21 - 0.23 MPa

Pressure Sensor: Yes

Precision of Pressure Sensor: 0.1 KPA

Precision of Temperature Sensor: 0.1°C

Water supply system: Manual

Quantity of clean water tank: 1

Quantity of waste water tank: 1

Water Tank: Water fed from outside tank

Quantity of steam generator: 1

Water Filter: 1

Vapour Filter: Yes

Temperature Sensor: Yes

Automatic protection when overpressure: Yes

Automatic protection when overtemperature: Yes

Bacteria Filter: 1

Fuse: 2

Power Cable: 1

Lock system of door: Mechanic + Electrical lockers

Screen size: 2.5 x 2 cm, 3.8x 2 cm

Life span: 5 years

Hot air exhaust system: Copper condenser, fan

121°C Solid: Yes

121°C Porous: No

121°C Hollow: No

134°C Solid: Yes

134°C Porous: No

134°C Hollow: No

B&D Test: No

Helix Test: No

Vacuum Test: No

Clean Program: No

Prion Program: No

User Define: No

Chamber Dimension: 250x450 mm

Diameter of chamber: 250 mm

Depth of chamber: 450 mm

Overall Dimension (LxWxH): 700x445x390 mm

Packing Size: 790 x 500 X 495 mm

Minimum size of table for installation: 480x320 mm

Chamber Material: Stainless Steel

Plug: 3 hole plug

Safety valve: 1

Tray: 3

Handle for tray holder: 1

Tray holder: 1

Instruction manual: 1

Sterilization programs: Yes/No

Weight: 41/50 kg

Wattage: 1700 W

Power: 1700 W

Power Supply: 220 V, 60 Hz


Optional Accessories:

Accessory Code Name Unit

AX1022 Ring 1

AX1023 Inner temperature sensor 1

AX1024 pt1000 1

AX1025 pt1000 (packing with plastic) 1

AX1026 Heating circle 1

AX1027 Steam generator cover 1Set

AX1028 Steam generator stand 1Set

AX1029 Steam generator spring type gasket 1

AX1030 Heating Rod 3

AX1031 Water Pump 1

AX1032 Vacuum Pump 1

AX1033 Fuse Wire 2

AX1034 Normally closed solenoid valve 3

AX1035 Three-way solenoid valve 2

AX1036 Germ-tight filter 1

AX1037 Voltage transformer 1

AX1038 switch 1

AX1039 Bleeder valve 2

AX1040 Fan 1

AX1041 Printer 1

AX1042 Control panel 1set

AX1043 LED 1set

AX1044 Big Pipe 1Kg

AX1045 Small Pipe 1kg

AX1046 Liquid sensor 3

AX1047 Electromagnet 1
