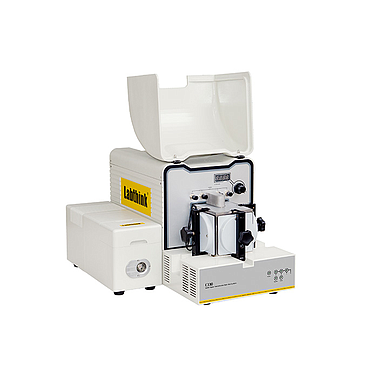

Labthink C330 水蒸气透过率测试系统

Test Range:

0.01 ~ 50 g/(m2•d) (Standard)

0.00005 ~ 0.25 g/(pkg•d)(Package)

Resolution: 0.001 g/(m2•d)

Repeatability: Bigger one of ±0.01 and 2% g/(m2•d)

Test Temperature: 10 ~ 55 ±0.2 °C

Test Humidity: 5% ~ 90% ±1%, 100% RH

Additional Functions:

- Package Test (3L Max.)

- DataShieldTM Note2

- Computer System required by GMP

- CFR21 Part11

Test Chamber: 3 test chambers

Specimen Size: 108mm X 108mm

Specimen Thickness: ≤3mm

Standard Test Area: 50cm2

Carrier Gas: 99.999% High-purity Nitrogen (outside of supply scope)

Carrier Gas Pressure: ≥0.28MPa / 40.6psi

Port Size: 1/8 inch metal tubing
