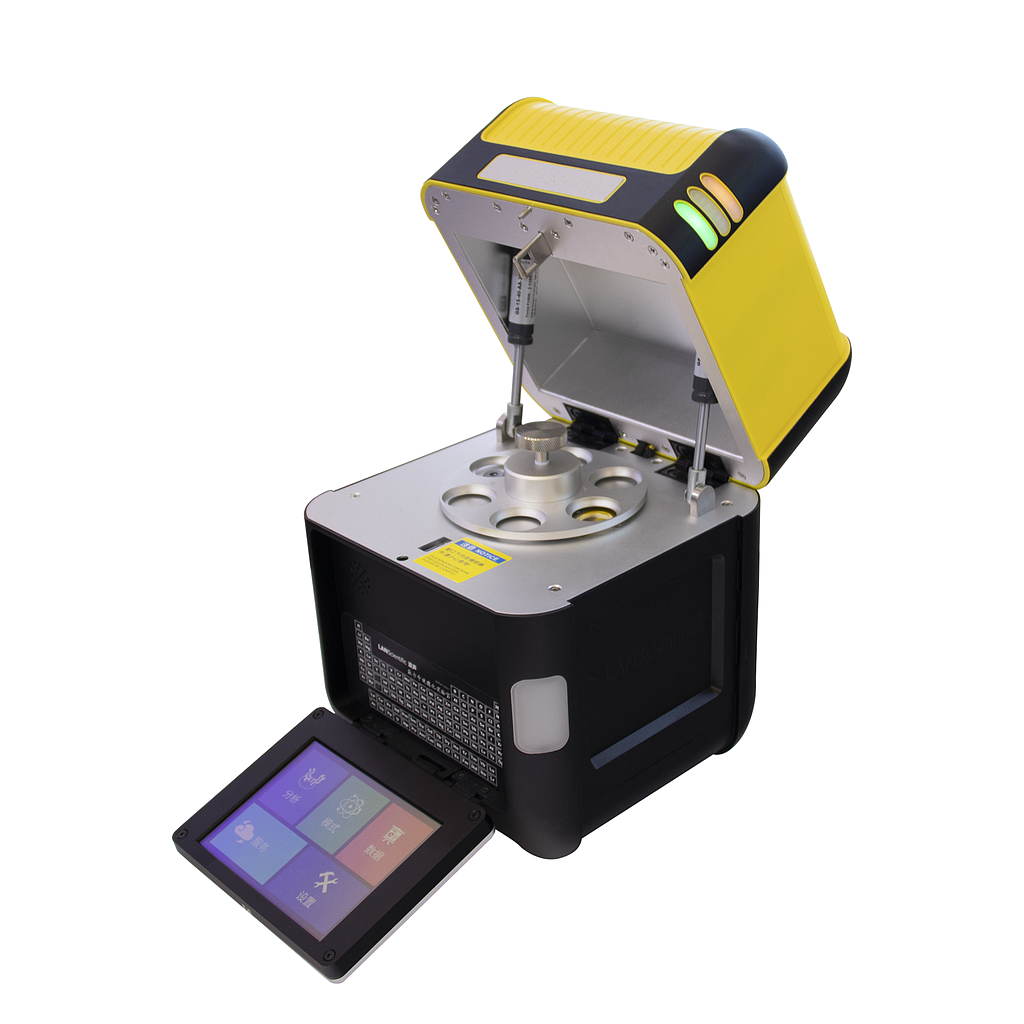

LANScientific PeDX RAMAN XRF-RAMA 光谱仪

Operating system: Android

Laser wavelength: 785 ± 0.5 nm

Laser power: 0-500MW, adjustable

Raman frequency shift range: 200 - 3000cm - 1

Raman resolution: < 6 cm - 1

XRF energy resolution: 145eV

XRF detection range: Mg (magnesium) -- U (uranium)

X-ray tube target material: W/Ag/ RH target material (optional)

X-ray tube voltage: 50kV /200μA upper limit, tube pressure and tube flow can be adjusted freely

Touch screen: 5. 7 inches

Size: 20cm L x 20m W x 2.68cm H

Weight: 5kg

Communication interface: 4G, WiFi, USB, Bluetooth

Operating temperature: - 20-50 ℃

Working humidity: 0% - 90% RH

Signal to noise ratio: > 3000:1

Power supply system: 4-6 hours. It is based on the I.MX6 Quad quad-core Cortex-A9 processor

System processor: 80MHz ADC digital pulse processor, 4096 MCA channel, 32GB storage
