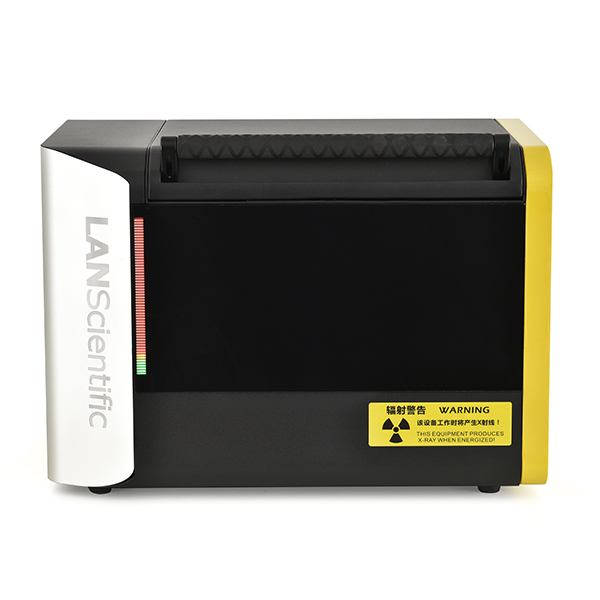

LANScientific ScopeX 980 台式XRF分析仪

Measurement: X-ray fluorescence analysis

Determination method: Energy dispersion type

Determination of the object: Solid, liquid, powder

Range of measurement: Na-U

Sample room size: 368*304*78mm

Maximum sample weight: 2.5 kg

Open way: The automatic control

X - ray generating department

X-ray tube: High power side window X-ray tube

Voltage: Max. 50KV

Current: limit 1mA

Cooling way: Air cooling

Collimator: 5mm,3mm,1mm,0.5mm


Type: Si-PIN

Cooling way: Peltier cooling

Measurement situation: Atmosphere, Vacuum (optional), Helium (optional)

Sample observation: 5 megapixel high-definition industrial camera

Data processing department

PC processor (CPU): I3-7100 equivalent frequency or above

Memory (RAM): DDR4 4G memory or above

Hard disk capacity (ROM): 1TB HDD or 256GB SSD or above

OS: Windows 10

Environment setup

Temperature conditions: 10°C ~ 35°C

Relative humidity: 40~70%(no dew)

Power supply: 220VAC

Rated power: 100W

Size of the host: 570*402*400mm

Host weight: 47kg
