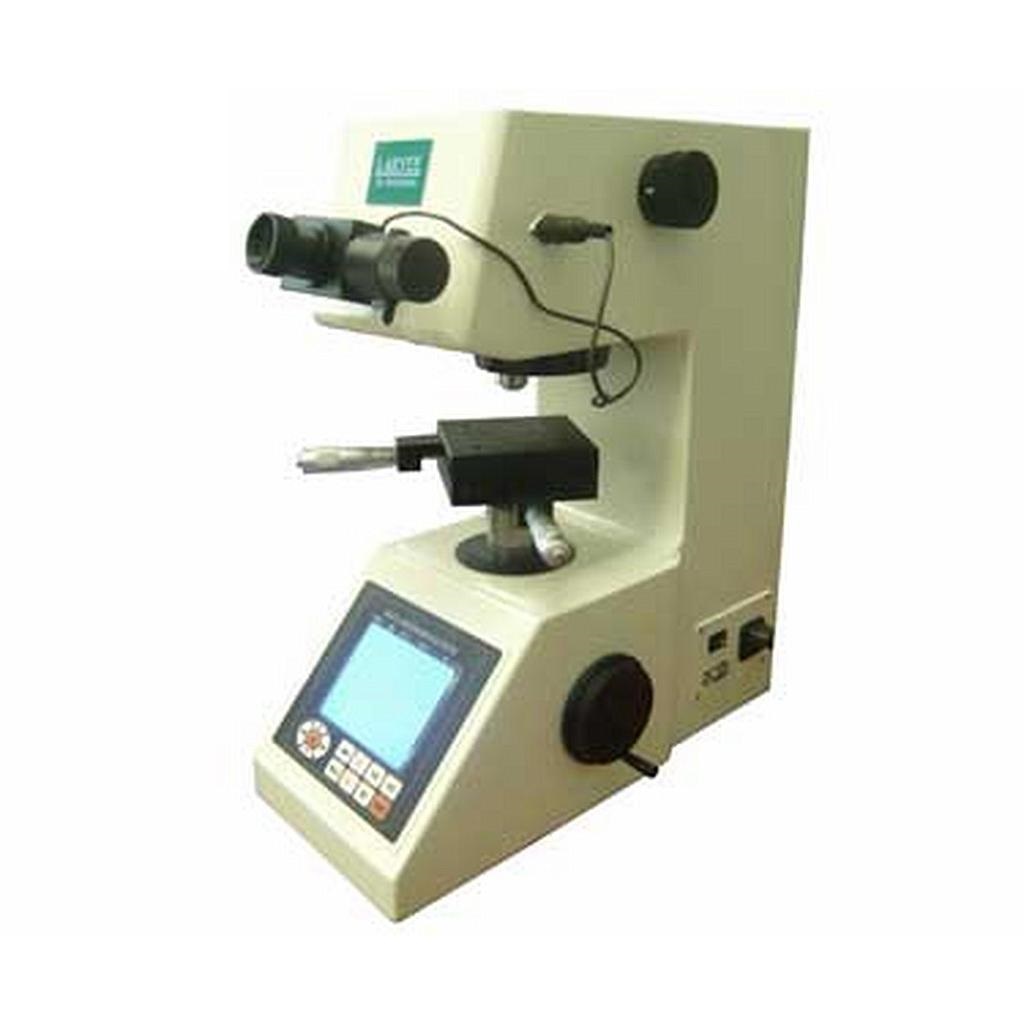

Vicker Laryee HVM-10数显维氏硬度计

- Test load(N)
2.942/4.903/9.807/19.6
1/24.52/29.4
2/49.03/98.07
- Test load(Kgf): 0.3 /0.5 /1 /2/2.5/ 3 / 5 / 10
- Carriage control: Automatic (loading/dwell-time/unloading)
- Load holding time: 0~60 seconds
- Magnification of microscope: 100X,400X
- Microscope Min. measuring unit: 0.0625um(400X) 0.125um(200X) 0.250um(100X)
- Testing range: 1HV~2967HV
- Lens/indenter switch: HVS series with hand Turret, HVM series with motorized turret
- Hardness Scales: HVM whith function of convert HB,HRC,HRA,HRB,HRN,HRT,
- Dimension of XY table: 100X100mm
- Stroke of XY table: 25X25mm
- Max. height of specimen: 170mm
- Max. depth of specimen: 130mm
- Light source: Cold Light Source
- Power: 1P~110V/220V, 50/60HZ
- Objective: 10X, 20X and 40X can be selected according to user’s requirement
- Dimension: 535mmX225mmX630mm
- Weight: Gross weight:60KG; Net weight: 50KG
- Main Standard accessories:
XY test table(HVS-5,HVS-10)
10X Digital micro eyepiece ; Lever ; Adjustable screw; Vickers hardness block, RS232 Cable, Mini Printer
- Option accessories
CCD Video system(HV-CCD),
HK hardness test

Datasheet
