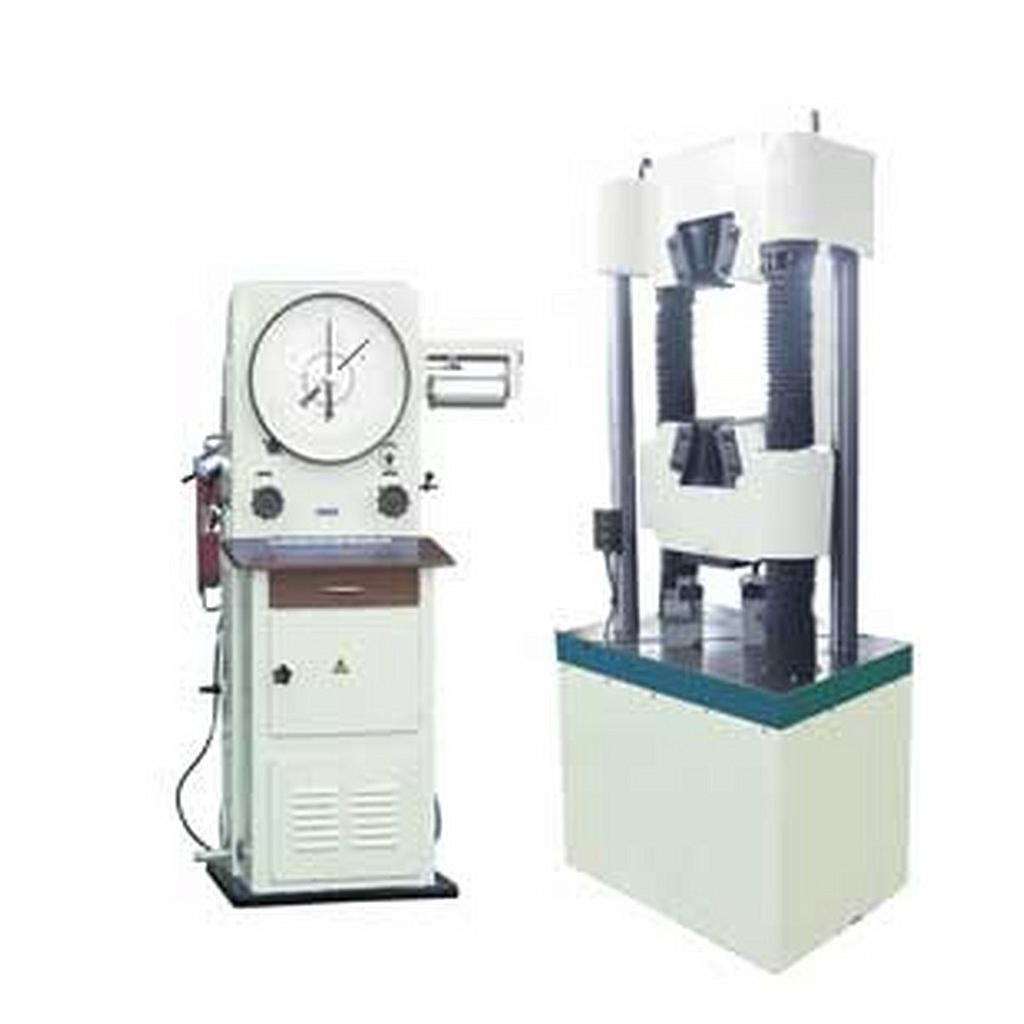

Laryee UH5160 液压万能试验机(12-600kN)

- Measuring range of force(kN): 12-600kN
- Accuracy: ±1% of indicated value
- Subsection of force: 1,2,5 for Dial type or No grade by Digital and Computer
- Tracing Plate speed: 0.4r/min, 0.8r/min, 2r/min for Dial type
- Clamping diameter for round specimen(mm): Ø14-40
- Clamping width of flat specimen: 75 mm
- Clamping thickness of flat specimen(mm): 0-30
+ Testing space
+ Tension: 650mm
- Compression: 550mm
- Compression Platen size(mm): 170×170
- Distance of bending by pass roll(mm): 100-450
- Piston stroke: 200mm
- Power supply: 380/220v±10%, 50/60Hz, 3 phase
- Working environment: Room temperature 10℃~30℃,relative humidity≤80%
- Overall dimension(mm)
+ Host machine: 950×630×2265
+ Dynomometer: 1070×810×1730
- Weight: 3200 kg
- Standard accessories:
Tension Test Accessories, Compression
Test Accessories,Bending Test Accessories,
A, B, C Weights, coordinate paper,
Dial Dynomometer
- Optional Accessories:
Shearing Test Accessories
photoelectric encoder,
Extensometer, PC interface and Software
