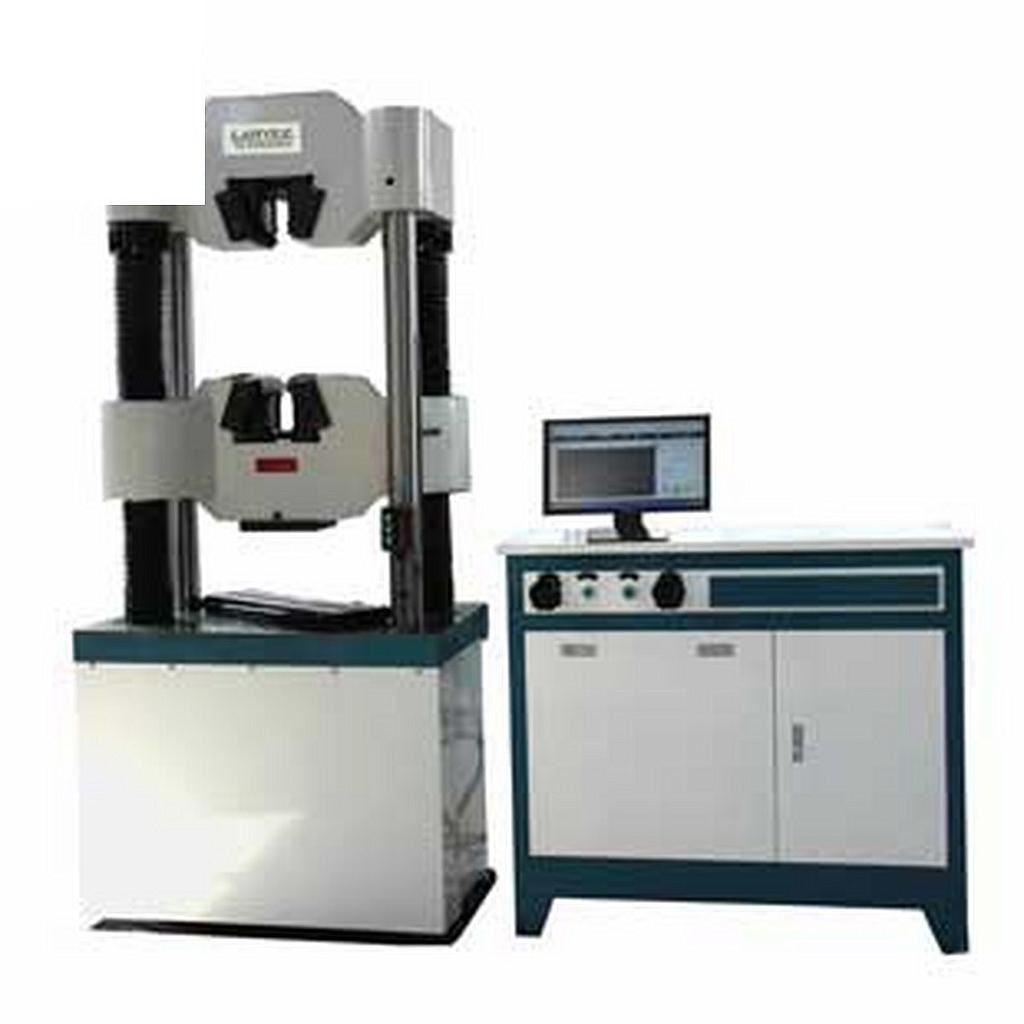

Laryee UH5330 液压万能试验机(6~300kN)

- Measuring range of force(kN): 6~300kN
- Accuracy: ±1% of indicated value
- Subsection of force: 1,2,5 for Dial type or No grade by Digital and Computer
- Tracing Plate speed: 0.4r/min, 0.8r/min, 2r/min for Dial type
- Clamping diameter for round specimen(mm): Ø10-32
- Clamping width of flat specimen: 70 mm
- Clamping thickness of flat specimen(mm): 0-15
+ Testing space
+ Tension: 620mm
- Compression: 550mm
- Compression Platen size(mm): Ø120
- Distance of bending by pass roll(mm): 60-320
- Piston stroke: 200mm
- Power supply: 380/220v±10%, 50/60Hz, 3 phase
- Working environment: Room temperature 10℃~30℃,relative humidity≤80%
- Overall dimension(mm)
+ Host machine: 800x500x1950
+ Dynomometer: 1070x810x1730
- Weight: 2100 kg
- Standard accessories:
PC, Printer
Extensometer, Displacement Encoder
Hydraulic Pressure Sensor,
Tension Test Accessories, Compression Test
Accessories,
3-Points Bending Test Accessories
- Optional Accessories:
Shearing Test Accessories,
Others according to order
