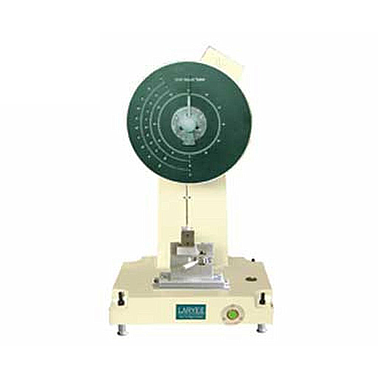

Laryee ZIT2122 伊佐德冲击试验机(5.5J,11J,22J)

- Impact energy: 5.5J, 11J, 22J
- Energy Accuracy: 1%
- Impact speed (m/S): 3.5
- Pendulum moment:
Pd1 = 0.53590Nm Pd2.75 = 1.47372Nm
Pd5.5 = 2.94744Nm Pd11 = 5.8949Nm Pd22 = 11.7898Nm
- Distance between striking edge to upper surface of clamps: 22mm
- Raising angle: 150°
- Round angle radius of striking edge: R=0.8mm
- Sample span size(mm): 10, 12.7
- Impact center distance (mm): 335
- Scale Reading:
0-5.5J Min. scale: 0.05J
0-11J Min. scale: 0.1J
0-22J Min. scale: 0.2J
- Dimension: 650×400×1100mm
- Weight(Kg): 95kg
