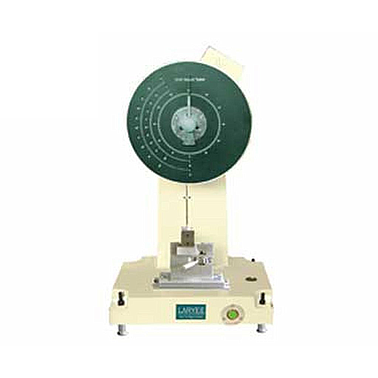

Laryee ZIT2175 伊佐德冲击试验机（1J，2.75J，（5.5J））
制造商: Laryee Model: ZIT2175 - 联系
- Impact energy: 1J, 2.75J, (5.5J)
- Energy Accuracy: 1%
- Impact speed (m/S): 3.5
- Pendulum moment:
Pd1 = 0.53590Nm Pd2.75 = 1.47372Nm
Pd5.5 = 2.94744Nm Pd11 = 5.8949Nm Pd22 = 11.7898Nm
- Distance between striking edge to upper surface of clamps: 22mm
- Raising angle: 150°
- Round angle radius of striking edge: R=0.8mm
- Sample span size(mm): 10, 12.7
- Impact center distance (mm): 335
- Scale Reading:
0-1J Min. scale: 0.01J
0-2.75J Min.scale: 0.025J
(0-5.5J Min. scale: 0.05J)
- Dimension: 550×350×900 mm
- Weight(Kg): 80kg
