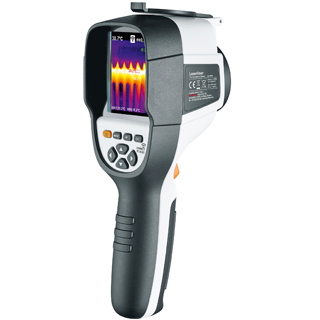

LaserLiner 082.086A 热像仪 (-20°C ~ 350°C)

IR Sensor: Uncooled microbolometer, 9 Hz, 8-14 μm Resolution 220 x 160 pixels

IR Optics: High-quality IR-lens FOV 27° x 35° fixed focus, working area: 0.5 m ... 20 m

Thermal Sensitivity: NETD 0,07°C @ 30°C

Measurement Range: -20°C ... 350°C

Weight (incl. battery pack): 389 g

Dimensions (W x H x D): 105 x 223 x 90 mm

Power Supply / Charging Time / Operating Time: Li-Ion pack battery 3.5V - 4.2V / 2000 mAh / Micro USB 4.75V - 5.50V / approx. 2 - 3 h (depending on use)

Protection Class: IP54

Storage Conditions: -20°C … 60°C, max. humidity 85% rH

Operating Conditions: 0°C … 45°C, max. humidity 20 … 85% rH, no condensation, max. working altitude 2000 m above sea level

Other Features: choice of 9 languages

Connections: Micro-USB charging

PORT WLAN

Memory Function: Integrated SD memory (more than 20.000 images)

Format: JPEG format

Digital Camera: Resolution 640 x 480 pixels

Image Modes: infrared image, digital image, MIX image

Display: 3.2" colour TFT

Accuracy: ± 2°C or ± 2% of measured value
