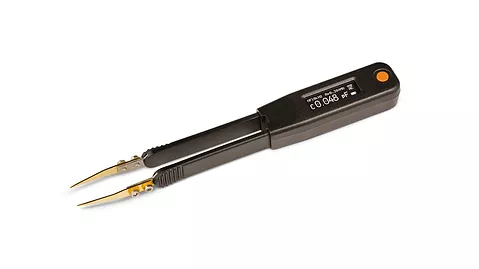

LCR Research LCR Elite1 LCR测试仪 (25mΩ -10MΩ; 0,3pF - 500uF; 1.0uH - 1.0H)

Basic Accuracy : R: 0.5%, L: 1.0%, C: 1.0%

Measurement Range (R) : 25mΩ to 10MΩ

Measurement Range (C) : 0.3pF to 500uF

Measurement Range (L) : 1.0uH to 1.0H

Test Frequency : 100Hz – 10kHz

Test Voltage : 0.45Vrms

Over Voltage Protection (between test tips) : No

Resistance (R) : Yes

Capacitance (C) : Yes

Inductance (L) : Yes

Impedance (Z) : No

Dissipation Factor (D) : No

Quality Factor (Q) : No

Phase Angle (Ө) : No

Equivalent Series Resistance (ESR) : Yes

Direct Current Resistance (DCR) : No

Diode Check : No

LED Testing : No

Continuity : No

Sorting : No

Recording : No

Self Calibration : No

PC Connectivity : No

Dimensions (L x W x H) : 151 x 19 x 14.5mm

Weight : 30g

Display : OLED 0.91″, 128 x 32 Resolution

Battery : 3.7V LiPO, 150mAH, Rechargeable

External Power Source : DC 5V, micro-B USB Connector

SMD Test Probe : Gold Plated (Regular)
