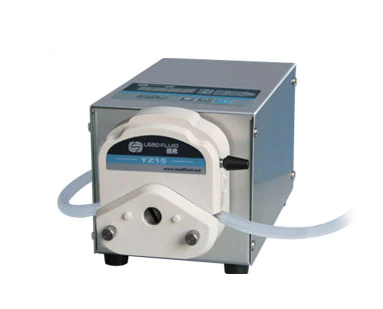

leadfluid BT102S(YZ15) 基本调速型蠕动泵 (0.006～280ml/m, 1 CH)

Specifications

Pump head: YZ15

Channel number: 1

Flow range: 0.006～280ml/min

  •  Flow accuracy:＜0.5%

  •  Speed range:0.1-100rpm.

  •  Speed resolution :0.1rpm

  •  Power supply :AC 220V±10%,50Hz/60Hz（standard）,

                       AC 110V±10%,50Hz/60Hz（optional）

  •  Power consumption：＜30W

  •  External control：Input electrical level 5V,12V(standard),24V(optional).

  •  External communication interface：RS485 communication interface

  •  Ambient temperature：0 ～ 40℃

  •  Relative humidity:＜80%

  •  IP grade:IP31

  •  Dimensions（LxWxH）218mmx127mmx122mm

  •  Weight：2.7 kg

Datasheet
