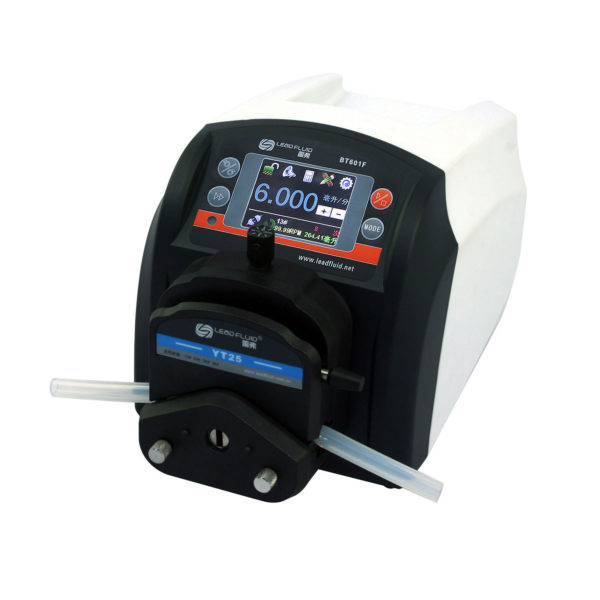

Leadfluid BT601F 分配型智能蠕动泵（0.006-2900mL / min，1CH）
制造商: Leadfluid Model: BT601F 来源: China 保障: 12 Month - 联系
Specifications
Flow range: 0.006-2900 mL/min
Speed range: 0.1-600 rpm
Speed resolution: 0.1 rpm
Speed accuracy: 0.2%
Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
Power consumption: < 50W
Logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
Communication interface: RS485 MODBUS
Operating condition: Temperature 0-40°C; Relative humidity < 80%
IP grade: IP31
Dimensions (L x W x H): 257 x 182 x 198 mm (10.12 x 7.17 x 7.79 inch)
Weight: 5.5 kg (12.1 lbs)
Details
| Drive type | Pump head | Ch | Tubing size | Flow rate per channel (mL/min) |
| BT601F (ABS case) | YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 0.006-1700 |
| YZ25 | 1 | 15# 24# | 0.16-1700 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-2300 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.16-2900 |
