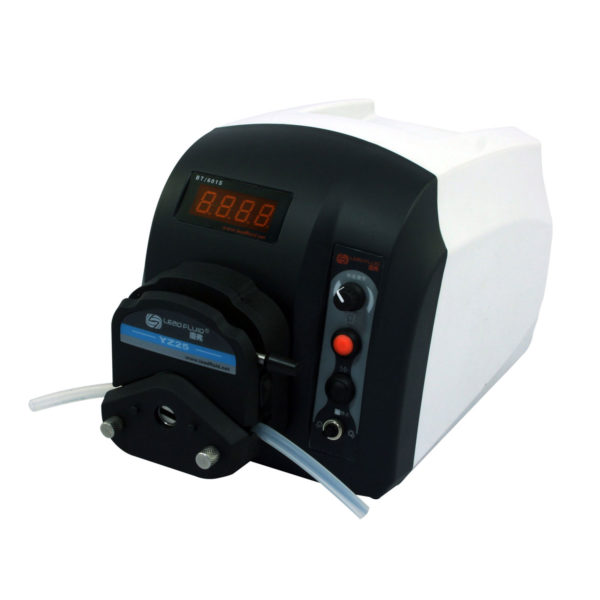

Leadfluid BT601S调速型蠕动泵(0.006-2900mL / min,2CH)
制造商: Leadfluid Model: BT601S 来源: China 保障: 12 Month - 联系
Specifications
Flow range: 0.006-2900 mL/min
Speed range: 0.1-600 rpm
Speed resolution: between 0.1-100 rpm, 0.1 rpm resolution; betweem 100-600 rpm, 1 rpm resolution
Flow accuracy: 0.5%
Power supply: AC 220V ± 10% 50Hz/60Hz; AC 110V ± 10% 50Hz/60Hz
Power consumption: < 50W
External control on/off signal: 5V, 12V (standard), 24V (optional). external analog control signal control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
Communication interface: RS485 MODBUS interface
Operating condition: Temperature 0~40°C; Relative humidity <80%
IP grade: IP31
Dimensions (L x W x H): 260 x 181 x 198 mm (10.2 x 7.1 x 7.8 inch)
Weight: 4.9 kg (10.9 lbs)
Drive type | Pump head | Channel | Tubing size (mm) | Flow rate (mL/min) per channel |
BT601S (ABS Plastic case) | YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 0.006-1700 |
YZ25 | 1 | 15# 24# | 0.16-1700 | |
YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-2300 | |
YT25 | 1 | 15# 24# 35# 36# | 0.16-2900 |
