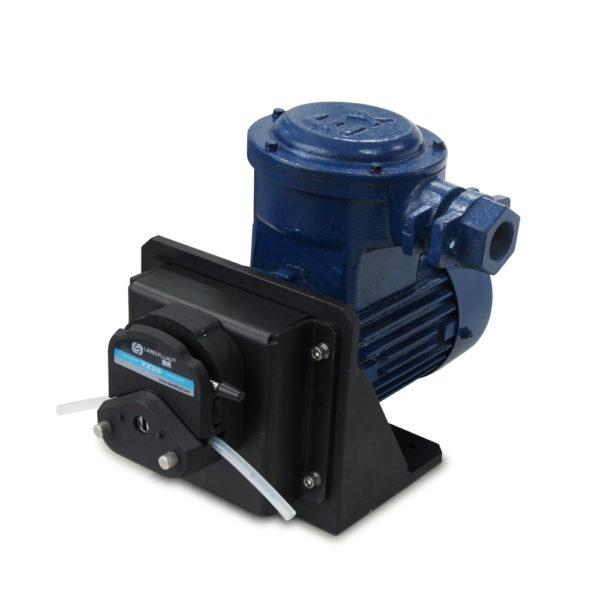

Leadfluide FG600S-A3 交流防爆电机型蠕动泵(0.006-6L / min,2 CH)

Specifications

• Flow range :0.006-6L/min

• Speed range: 100-600rpm

• Adjust speed: Frequency converter infinitely adjustable-speed (standard    configuration :converter and motor, without connecting cable)

• Speed resolution: 0.1HZ(The corresponding rotational speed is1.8rpm)

• Control function: Start/stop,Positive and negative, adjust speed, communication etc functions.

• Power supply: Three phase 380 v (AC220V  optional)

• Power consumption: 0.37KW

• Working environment: Temperature 0℃-40℃,relative humidity<80%

• Anti-explosion Grade: DIIBT4

• IP Grade: IP55

• Casing Dimensions: (LxWxH)324*250*291

• Weight: 26Kg

Detail

FG600S-A3 Peristaltic pump applicable pump head, tubing and flow rate:

Drive TypePump headChannel NumberTubing(mm)One channel ( flow rate)
FG600S-A3

















YZ15113#14#16#19#25#17#6-1700
YZ25115#24#170-1700
2×YZ15213#14#16#19#25#17#170-1700
2×YZ25215#24#250-6000
KZ25115# 24#35#36#250-6000
