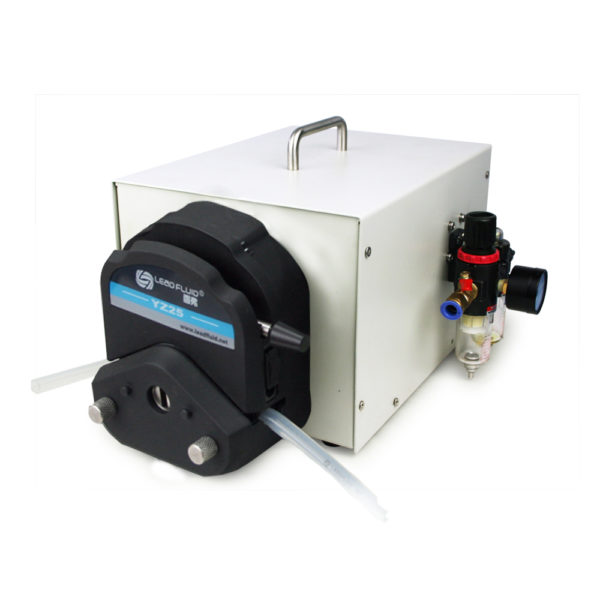

Leadfluid FG600S-Q 气动防爆马达型蠕动泵(最大12L / min,1CH)

Specifications

Flow rate:Max 12L/min

• Speed range :140-600rpm(On load, speed fluctuation is bigger than motor driven )

• Adjust speed  :Stepless speed regulation ,by adjust the air pressure or flow valve control.

• Control function: Start/stop(standard),reversing function(optional)

• Gas supply pressure : 0.1-0.7MPa

• Gas consumption:≥0.3m³/min

• Working environment: Temperature -10℃-60℃,relative humidity       <80%

• IP grade: IP65

• Casing dimensions :(LxWxH)309*316*237

• Weight :11Kg

Detail

FG600S-Q Peristaltic pump applicable pump head, tubing and flow rate:

Drive TypePump headChannel NumberTubing(mm)One channel flow rate (ml/min)
FG600S-Q





FG601S-Q

YZ15113#14#16#19#25#17#9-1700ml/min
YZ25115#24#9-1700ml/min
2×YZ15213#14#16#19#25#17#250-1700ml/min
2×YZ25215#24#250-1700ml/min
KZ25115#,24#,35#,36#350-6000ml/min
YZ35173#,82#2000-12000ml/min
