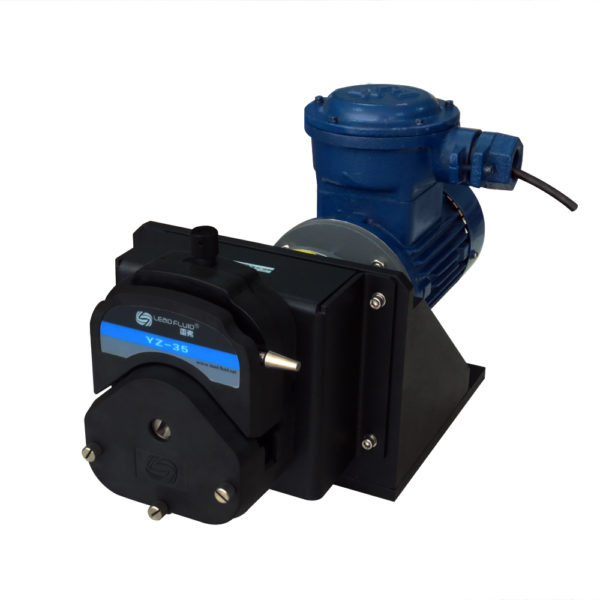

Leadfluid FG601S-A3 交流防爆电机型蠕动泵(800-12000mL / min,2CH)

Specifications

• Flow range 800~12000ml/min

• Speed range: 5-50Hz (60~570rpm)

• Speed resolution: 0.1HZ(1.14rpm)

• LED display.

• Power supply : Three phase 380 v,50Hz/60Hz (AC220V  optional)

• Motor parameter: Three phase 380 v/0.37KW 2800rpm

• Power consumption: 0.37KW

• Working environment: Temperature 0℃~40℃,relative humidity<80%

• Casing Dimensions: (LxWxH)560*250*271.5

• Anti-explosion Grade: DIIBT4 (motor)

• IP Grade: IP65

• Weight: 36Kg

Detail

FG601S-A3 Peristaltic pump applicable pump head, tubing and flow rate:

Drive TypePump headChannelTubing(mm)One channel flow rate ( mL/min)
FG601S-A32×KZ25215#,24#,35#,36#120-6000mL/min
YZ35173#,82#120-12000mL/min
2×YZ35273#,82#(above 100rpm of silicone tube)
