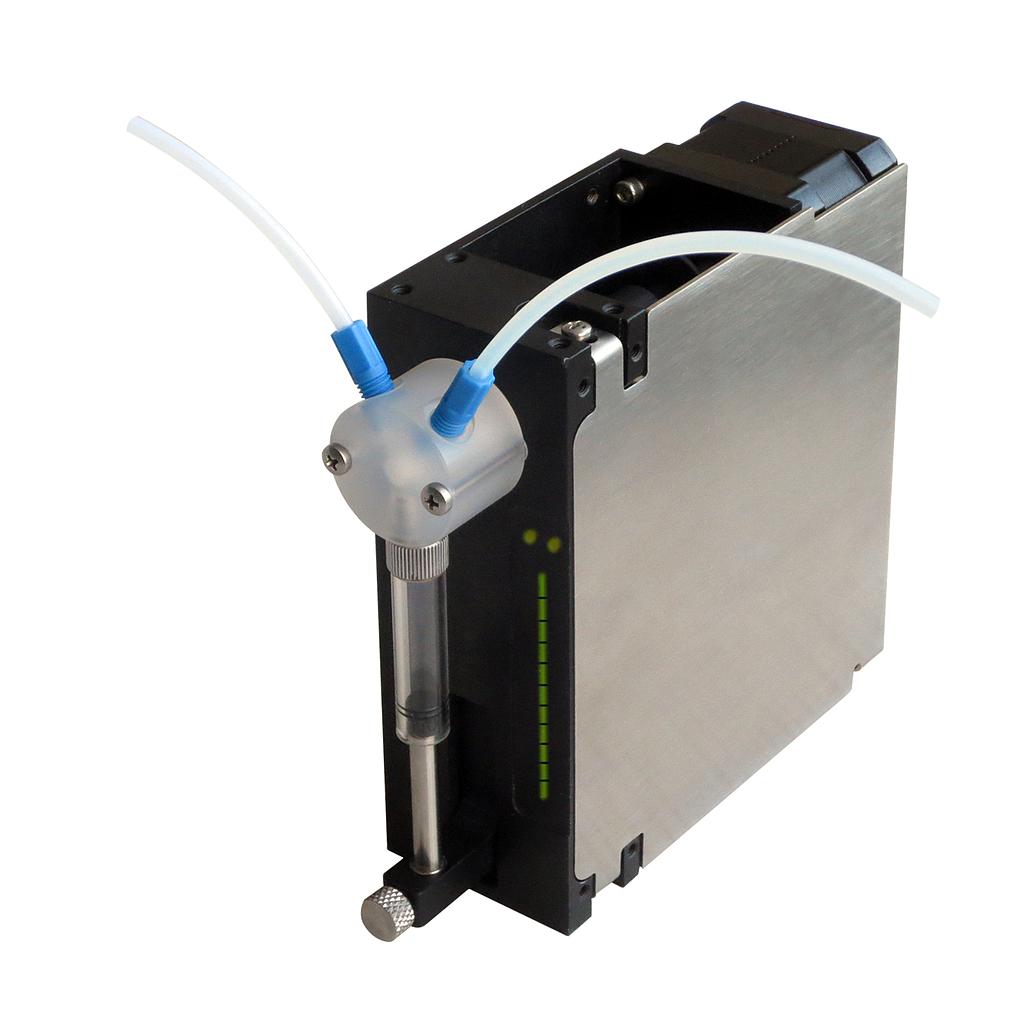

Leadfluid G3030-1S 工业注射泵(5 mL,2CH)

  • 制造商: leadfluid
    Model: G3030-1S
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • Price (exclude tax) 36,754,000 VND
    Price (include tax) 40,429,400 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267



Flow accuracy:error≤1% (rated stroke)

Flow repeatability : repeatability≤0.5%

Rated stroke( step):30mm(3000 steps)

Linear speed:0.005mm/s-25mm/s

Time for rated stroke:1.2s-6000s

Control resolution:0.01mm(1 step)

Plunger drive force( max) =76N

Syringe model:50 UL,100 UL,250 UL,500 UL,1 mL,2.5 mL,,5 mL

Valve type: 4 -port 90°valve(Standard)

3- port 120° valve(Optional)

Communication interface :RS485/RS232  can setup

Communicate baud rate :9600/38400

Pump parameter setting:7 dial DIP switch

Dimension (L×W×H):110×44.4×127(mm)

Power supply:DC 24V/1.5A

Working temperature:15℃-40℃(determined by the PTFE of the syringe )

Working Relative Humidity:  <80%
