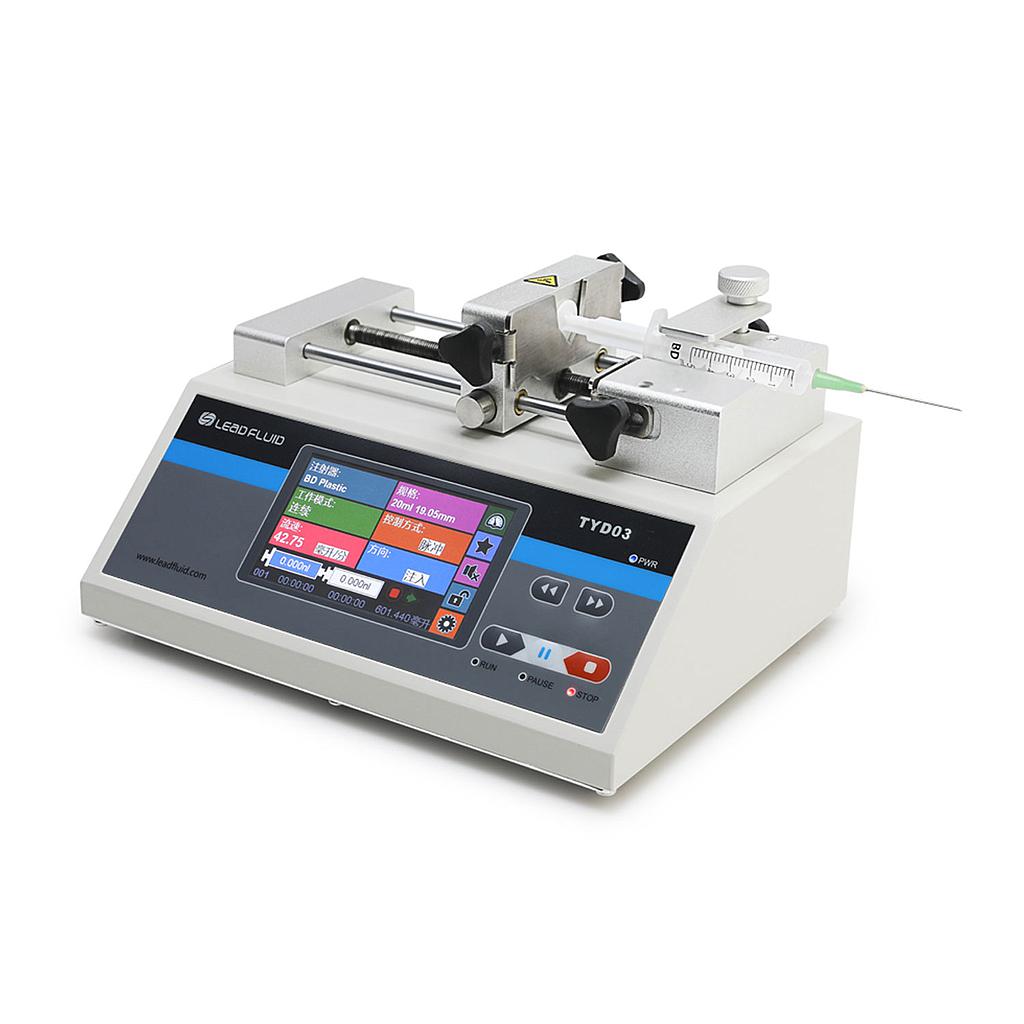

Leadfluid TYD03-01 实验室双向推拉注射泵(0.5 ul -100ul,1CH)
制造商: Leadfluid Model: TYD03-01 来源: China 保障: 12 Month - 联系
Specifications
• Syringe size: 0.5 ul -100ul;
• Work mode: infusion, withdraw, infusion/withdraw, withdraw/infusion, continuous mode;
• Channel number: 1;
• Stroke of pump: 140 mm;
• Pusher advance per microstep: 0.03125 um/ustep;
• Linear speed: 0.2um/min – 30 um/min;
• Linear resolution: 0.2 um/min;
• Linear travel accuracy: error <± 0.35% (>30% of pump stroke);
• Linear force: maximum rated: > 16KGF;
• Thrust regulation: 1-100% arbitrary adjustable.
• Syringe selection: built-in main manufacturers, the main model syringe to choose;Can use custom syringe, direct input syringe size& diameter;
• Flow calibration: through the calibration procedure to obtain more accurate fluid volume;
• Display: 4.3 -inch color LCD, 480 * 272 resolution, color 65k; With screen display and transfusion volume, quantity of liquid, flow, operation direction, syringe specification, etc.;Animation display operation status;
• Operation mode: touch screen + button;
• Power-off memory: storing the running parameters automatically.;
• Other features: pause and stop;The sound tip;The lock parameters;Fast forward and retreat quickly;
• Control signal input: 1 way down along the priming, 1 way down along the trigger to stop;
• Communication interface: RS485, MODBUS protocol;
• Applicable power: AC90-264 – v / 20 w;
• working temperature: 5 to 40 ℃;
• Relative humidity: < 80% RH;
• Dimension: 245 * 195 * 133 mm
• Weight: 3.2 kg
