Specifications
Flow range: 0.06-6000 mL/min
Speed range: 0.1-600 rpm
Speed resolution: 0.1rpm
Flow accuracy:0.5%
Power supply: AC 180-264V 50Hz/60Hz (standard) AC 90-132V 50Hz/60Hz (optional)
Power consumption: < 200W
External control:Input level 5V, 12V(standard), 24V (optional); External control analog 0-5V(standard), 0-10V, 4-20mA (optional)
Communication: RS485 MODBUS interface
Operating condition: 0-40 °C
Relative humidity: < 80%
IP grade: IP31
Dimensions(L x W x H): 286 x 180 x 230mm (11.3 x 7.1 x 9.1 inch)
Weight: 6.2 kg (13.7 lbs)
Chi tiết
| Drive type | Suitable pump heads | channel | Tubing size (mm) | Flow rate (mL/min) per channel |

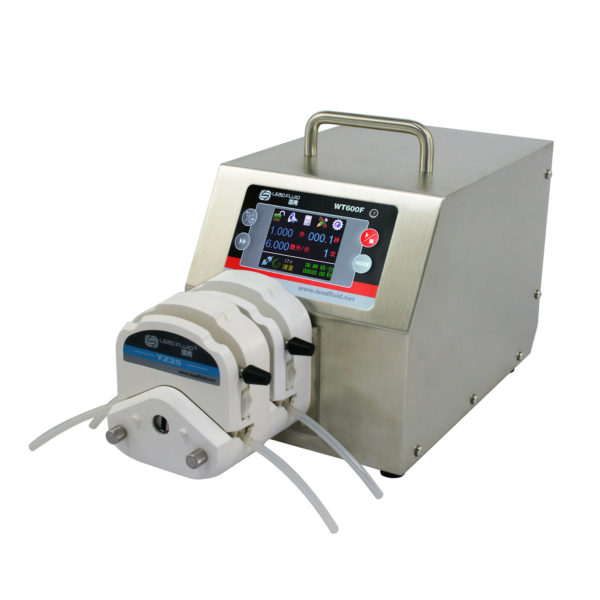

| WT600F (304SS case) | YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 0.06-1700 |
| YZ25 | 1 | 15# 24# | 1.7-1700 | |
| 2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17# | 0.06-1700 | |
| 2 x YZ25 | 2 | 15# 24# | 1.7-1700 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.06-2300 | |
| YT25 | 1 | 15# 24# 35# 36# | 1.7-2900 | |
| 2 x YT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 0.06-2300 | |
| 2 x YT25 | 2 | 15# 24# 35# 36# | 1.7-2900 | |
| KZ25 | 1 | 15# 24# 35# 36# | 2.5-6000 |
