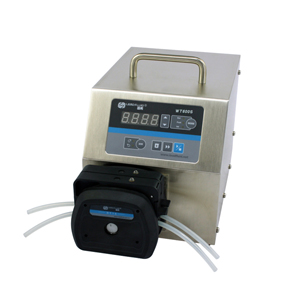

Leadfluid WT600S基本型变速蠕动泵(3-6000mL / min,4CH)

  • 制造商: leadfluid
    Model: WT600S
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Leadfluid-China

Model:  WT600S

Warranty: 12 months


Specifications

Flow range: 3-6000 mL/min

Speed range: 30-600 rpm

Speed resolution: 1 rpm

Flow accuracy: 3%

Power supply: AC 180-264V 50Hz/60Hz (standard); AC 90-132V 50Hz/60Hz (optional)

Power consumption: <200W

External on/off control voltage: 5V, 12V (standard), 24V (optional); External control analog signal: 0-5V (standard), 0-10V, 4-20mA (optional)

Communication interface: RS485 MODBUS

Operating condition: 0~40 °C

Relative humidity: < 80%

IP grade: IP31

Dimensions (L x W x H): 286mm x 180mm x 230mm (11.3 inch x 7.1 inch x 9.1 inch)

Weight: 6.2kg (13.9 lbs)

详细
Drive typeSuitable pump headschannelTubing size (mm)Flow rate (mL/min) per channel
WT600SYZ15113# 14# 16# 19# 25# 17# 3-1700
YZ25115# 24# 50-1700
2 x YZ15213# 14# 16# 19# 25# 17#  3-1700
2 x YZ25215# 24# 50-1700
4 x YZ15413# 14# 16# 19# 25# 17#  3-1700
4 x YZ25415# 24#  50-1700
KZ25115# 24# 35# 36#  80-6000
2 x KZ25215# 24# 35# 36#   80-6000
DT15-24216# 19# 25# 17# 14-1600
DT15-44416# 19# 25# 17# 14-1600
YT15113# 14# 16# 19# 25# 17# 18#3-2300
YT25115# 24# 35# 36#50-2900
2 x YT15213# 14# 16# 19# 25# 17# 18#3-2300
2 x YT25215# 24# 35# 36#50-2900
4 x YT15413# 14# 16# 19# 25# 17# 18#3-2300
4 x YT25415# 24# 35# 36#50-2900
