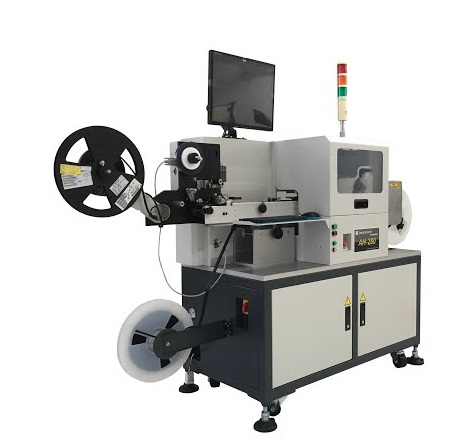

LEAPTRONIX AH-280 Automated Programming System (3000UPH)

  • 制造商: LEAPTRONIX
    Model: AH-280
    来源: Taiwan
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




U.P.H.: 3K (programming time < 8s)

*Operation

Repeatability:

+ X Axis ±0.02mm

+ R Axis ±0.067°

+ Z Axis ±0.02mm

Max. Stroke:

+ X axis 590mm

+ R axis 340°

+ Z axes 28mm

IC Pick & Place: Vacuum Nozzles

Device Detection: Vacuum Sensor

Dimension(Main Unit): 1280x600x1210(W/D/H)mm

Dimension with LED Alarm & Packing Modules: 2100x600x1720(W/D/H)mm

Weight: 200kg

* Position System:

Positioning: Mechanical Offset Correction

Device Size: 30 x 30mm (Max)

*Programming System:

Built-in Programmer: Leaper-56 Universal Programmer

Adapter No. : 1~36

PIN Driver: 48 Universal

IC Type Packages: MCU, NAND Flash, NOR Flash, SPI, EEPROM, EPROM, FPGA...

IC Packages: WLCSP, BGA, u-BGA, QFN, LQFP, MLP, SNT, WSON, TSSOP, SSOP, SOP...

File Format: INTEL HEX, MOTOROLA HEX, TEK HEX, ASCII HEX, BINARY....

Communication: USB 2.0

* Input Media:

Tube Input: 150mil, 207mil, 300mil, 330mil

Tube Output: 150mil, 207mil, 300mil, 330mil

Tape Input: Tape Width 12~24mm

Tape Output: Tape Width 8~32mm (Pressure self-sealing)

* Control System:

OS: Windows XP embed

Display: 17” LCD

Data Input: Keyboard/Mouse

* Power:

AC Input: AC 200V~245V, Single Phase 3-Wire

Frequency: 50/60Hz

Power Consumption: 450W

Air Pressure: 0.6MPa (~6.0kg/cm2)

Air Input: 32 L/Min.
