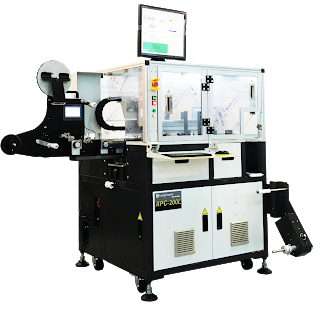

LEAPTRONIX APC-200 Automated Package Changer (UPH: 36000)

Control System

Operating system: PC-based control with Windows XP

Display: 17" TFT LCD monitor

Data entry: keyboard/mouse

Operation Requirement

Input voltage: AC200 ~ 245V, Single-phase, 3-wires

Input line frequency: 50/60Hz

Power consumption: 450W

Specification

Dimension: 800 x 950 x 1312 mm (W/D/H)

Weight: 300kg

Standard Accessories

APC-200/220 main unit ..........x1

ATT-200 automatic tray

Transporter ....................x1

CD ................................x1

(Windows 7 OS: IPC driver, operating software and user manual are included )

Detail

Optional Accessories

Tube In: Semi-Automatic Tube Loader STI-3-xxxkit (xxx:IC size), 3kg

Tube Out: Semi-Automatic Tube unloader STO-3-xxxkit (xxx:IC size), 3kg

Tape In: Automatic Feeder ATF-1-xxxkit (xxx:IC tape width) , 2kg

Tape Out: Automatic Taping Machine ATM-32 / 58, 15kg

AOI Module

Mark Machine: Mark Tape out devices (MK-1)

Nozzle: In accordance with IC size
