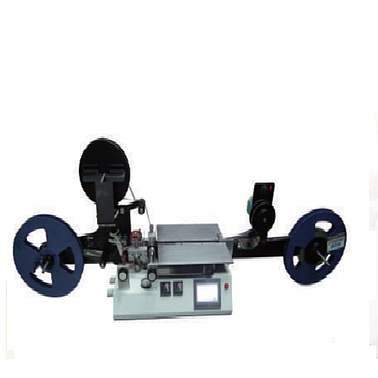

Leaptronix ATM-200S-66 自动收料包装机

Application: Stand-alone

Seal form: Heating sealing/PSA

Tape width: 8~66mm

Carrier tape diameter: 200~550mm

Seal film: 200M~500M/roll: Heat sealing and PSA accepted

Heat seal knife width: 1 mm

Heat seal knife length: 54 mmm

Speed: Continuous type 150mm/sec (max)

Temperature control: PID micro computer program control 0~260°C

Controller: 5 inches human machine interface/PLC

Power: single phase 220VAC, 50/60Hz

Source of air pressure: 5.0 kg/cm2

Dimension: 360mm/ 530mm /1440mm (D / H / W )

Weight: 30kg
