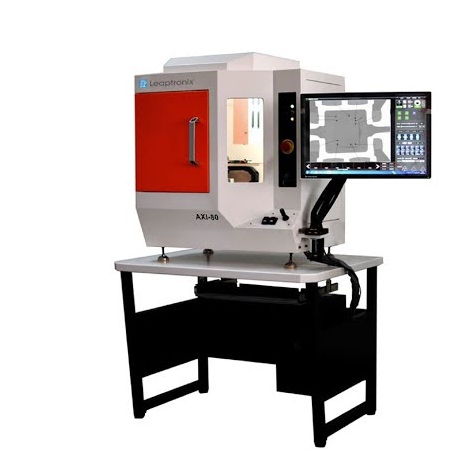

LEAPTRONIX AXI-80 X-Ray Inspection System

System Parameters

Size: 750(L)x570(W)x890(H)mm

Weight: 300kg

Power: 220AC/50Hz

Power Consumption: 0.5kW

X-ray Tube

Type: Closed

Max.Voltage: 80/90kV

Max.Power: 200μA

Spot Size: 5μm

Detector

Intensifier: FPD

X-ray Coverage: 48mm x 54mm

Resolution:  208Lp/cm

Work Station

Max.Loading Size: 200mm x 200mm

Max.Inspection Area: 200mm x 200mm

Oblique Angle Views: 360° rotary fixture (Optional)

X-ray Leakage: <1μSv/h
