Datasheet

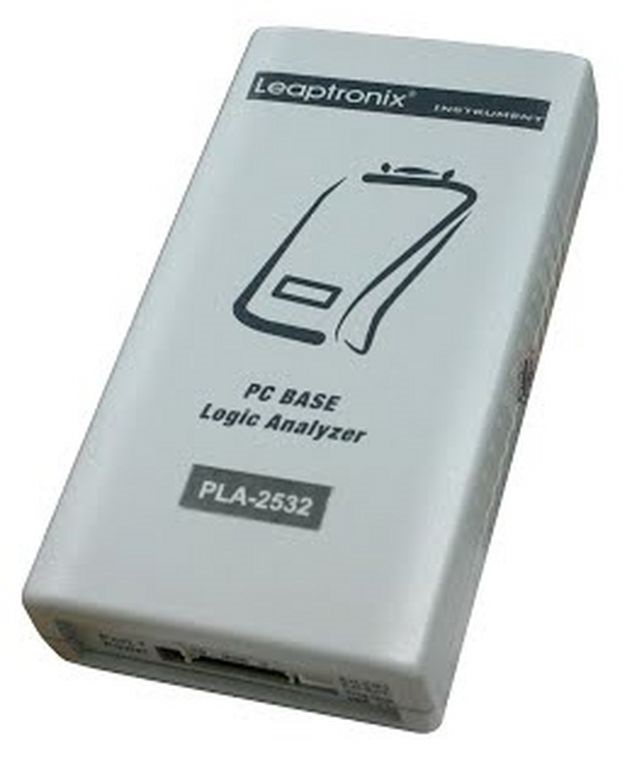

PC-based Logic Analyzer & Data Logger
Provide the most economical measurement solution
Introduction
The PLA series provides complete date acquisition system, Logic Analyzer and Data Logger. This small instrument is making digital software and hardware designers the ability to quickly capture the complex signals for analysis and debugging. Moreover, the PLA is able to cooperate with your own design program for test automation system.
Features
Logic Analyzer
- Internal (asynchronous) and External (synchronous) capture : Offer a more convenient environment for engineers.
- The timing of each trigger point can be shown by the cursor mark.
- Binary code and hexadecimal List mode (State) display.
- Able to save measuring data and waveform results.
- Provide I2C, SPI, UART and CAN signal decoding function on PC.
- Provide various signal trigger and capture : Total of four kinds of trigger modes including Pattern/Edge/AND/OR.
- 256K Bytes ~ 2M Bytes long memory depth : each CH memory depth is up to 128Kbits ~ 512Kbits.
- The adjustable sample rate size can be set by users, which avoids long capturing time.
- “Trigger Counter” and “Pulse Width Trigger” function.
- High-speed Zoom In/Zoom Out function.
- Smart software provides text file for saving the Binary Code of waveform.
- USB 2.0 interface for PC link function, which can connect with PC for user to save, analyze, view and printout.
- Powered by USB.
Data Logger
- Provide friendly software, no matter what program language, just key in the timing,trigger condition and logic level etc, then start the data acquisition.
- Use binary for logging the code.
Specification
| |
PLA-1016
|
PLA-2532
|
|
Timing Analysis
|
100MHz
|
250MHz
|
|
State Analysis
|
100MHz
|
100MHz
|
|
Bandwidth
|
100MHz
|
100MHz
|
|
Channels
|
16CH
|
32CH
|
|
RAM Size
|
256K Bytes
|
2M Bytes
|
|
Storage Depth per Channel
|
128K bits x 16CH
|
512K bits x 32CH
|
|
Maximum Input Voltage
|
±30V
|
±30V
|
|
Threshold Range
|
-4V～+4V
|
-4V～+4V
|
|
Data Skew
(Channel to Channel)
|
10ns typical
|
4ns typical
|
|
PC Link Interface
|
USB 2.0
|
USB 2.0
|
|
Temperature
|
0℃～45℃
|
0℃～45℃
|
|
Dimension
|
15cm x 8cm x 3cm
|
15cm x 8cm x 3cm
|
|
Weight
|
230g
|
240g
|
PC System Requirement
- Operating System：Windows 10 / 8 / 7 / Vista / XP ( 32bits & 64bits )
Standard Accessories
- Main unit x1
- Lead Set：16CH x1, 32CH x2
- CD x1 (Driver and user manual are included)
- USB cable x1
Optional Accessories
- Testing probe (testing hook)
