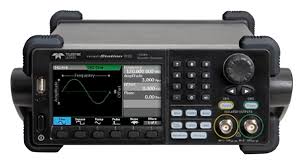

Lecroy WaveStation 3122 功能/任意波形发生器(120Mhz,500MS / s,2CH)

- Bandwidth: 120 MHz
- Channels: 2
- Waveforms: Sine, Square, Ramp, Pulse, Noise, Arbitrary: Stairup, Stairdown, Positive Pulse, Negative Pulse,
Up Ramp, Down Ramp, Sinc, Gaussian, LogFall, LogRise, Sqrt, TwoTone, etc
- Sine: 1 μHz - 120 MHz
- Square: 1 μHz - 50 MHz
- Pulse: 500 μHz - 40 MHz
- Triangle/Ramp: 1 μHz - 4 MHz
- Arbitrary Waveforms: 1 μHz - 40 MHz
- Modulation: AM, PM, FM, ASK, PSK and FSKduty-cycle square waveform
- External Clock: 10 MHz ±  1 kHz
- Sync Output: VOH (min) > 4.5 V, VOL (max) < 0.5 V; (IOL / IOH = 8 mA)
- Trigger Output: CMOS compatible
- External Trigger: CMOS compatible
- Output Amplitude - CH1: 1 mVpp - 20 Vpp
- Output Amplitude - CH2: 1 mVpp - 20 Vpp
4 mVpp - 10 Vpp (high impedance, > 10 MHz)
- Display: 4.3 inch TFT-LCD, 480 x 272, RGB
- Dimensions 105 mm x 261 mm x 344 mm (4.1” x 10.3” x 13.5”)
- Weight: 2.8 kg (6.1 lbs)
- Power: 100 - 240 Vrms (± 10%), 50 / 60 Hz)
- Included with Standard Configuration
+ Power Cable for the Destination Country
+ USB 2.0 Cable Type A to B (Black, 1 m)
+ USB to GPIB Converter
+ Getting Started Manual
+ Performance Certificate
+ Declaration of Conformity
+ WaveStation PC Software CD
+ Product Registration Card

Details
High Performance and Signal Fidelity

Accurate waveform creation with high resolution, fast sample rate, and low distortion

Extensive Waveform Library

5 basic functions and over 40 built-in arbitrary waveforms

Variety of Modulation Schemes

Built-in modulation capabilities include AM, PM, FM, ASK, PSK and FSK

Simple, Fast Waveform Creation

Quickly access functions from the front panel, view created waveforms and waveform parameters on the display

Connectivity and Communication

USB and GPIB for simple remote control, automation and transferring data

Graphical Waveform Creation

Easily create and edit waveforms on the PC and quickly transfer to the WaveStation
