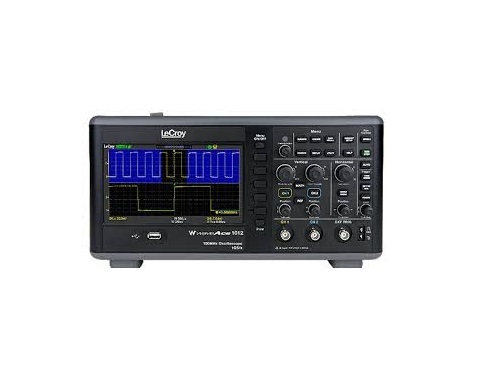

Teledyne LeCroy WaveAce L1012 示波器(100 MHz,1 GS / s,2通道)

  • 制造商: LECROY
    Model: L1012
    来源: China
    • 报价要求 报价要求
  • 18,800,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Maker: Teledyne Lecroy

Model: WaveAce 1012

Bandwidth: 100 MHz

Rise Time: 3.5 ns

Input Channels: 2

Vertical Resolution: 8-bits

Vertical Sensitivity: 2 mV/div – 10 V/div

Bandwidth Limiting Filter: 20 MHz

Maximum Input Voltage: 400 Vpk, CAT I

Input Coupling: GND, DC 1 MΩ, AC 1 MΩ

Input Impedance: 1 MΩ || 18 pF

Sampling Rate: (Single Shot) 1 GS/s (interleaved), 500 MS/s (all channels)

Sampling Rate (Equivalent Time): 25 GS/s

Peak Detect Period: 10 ns

Memory Length: 1 Mpts/Ch

Maximum Memory: 2 Mpts

Timebase Range 2.5 ns/div - 50 s/div

Standard Probes: 10:1, 1:1

Triggers: Edge, Pulse Width, Video, Slope (Rise Time), Alternate

Measure:   Amplitude, Average, Base, Burst Width, Cyclic RMS, + Duty Cycle, - Duty Cycle, Fall Time, Frequency, Max, Mean, Min, Overshoot, Peak-Peak, Period, Phase, Preshoot, Rise Time, RMS, Top, + Width, - Width.

Math : Add, Subtract, Multiply, Divide, FFT

Waveform Storage: 20 waveforms and 2 reference waveforms

Input/output Interfaces: USB USB host port for fash drives, USB device port for connecting to PC and printers

Display: Color 7.0 TFT-LCD, Wide QVGA; 480 x 234 pixels

Dimensions (HWD)  163 mm x 313 mm x 115.8 mm; 6.42" x 12.32" x 4.6"

Weight  2.78 kg; 6.10 lbs.

Power : 100 - 240 V AC

Manufaturer: Lecroy USA
