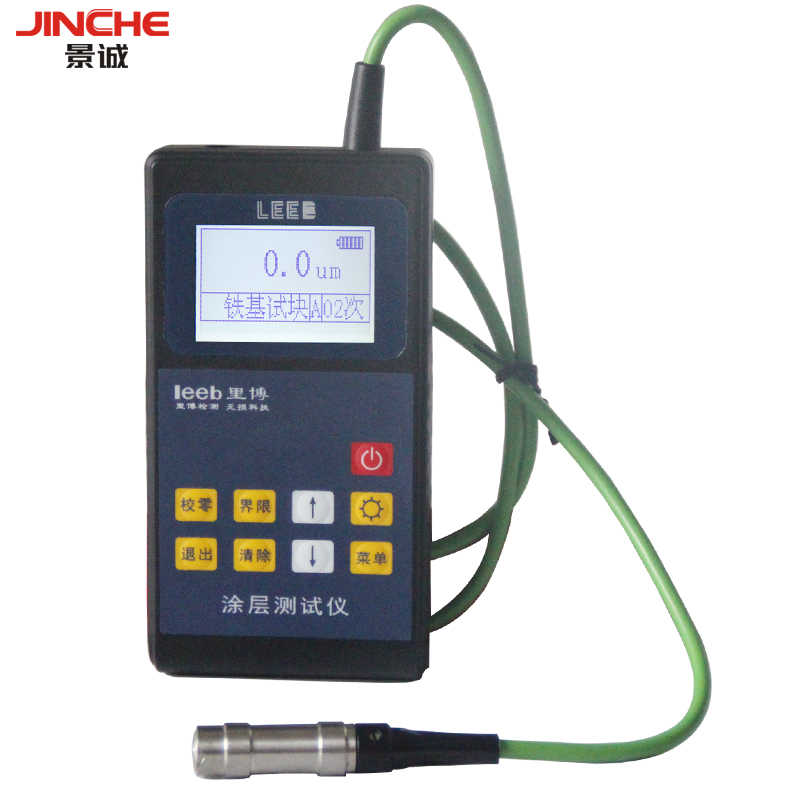

Leeb 210 Coating thickness gauge (0~1250μm; magnetic induction (Fe))

Operating principle:Magnetic induction (Fe)

Measuring range (µm): 0~1250μm

Probe: Settled Changeable


Accuracy: ±[(1~3%)H+1]

Low range resolution (µm): 0.1μm

Min curvature of the min area (mm): Convex1.5

Diameter of the min area (mm): Φ

Critical thickness of substrate (mm): 0.5

Memory: 500 Groups measured data

Dimensions: 115×70×30mm

Power supply: AAA   Alkaline battery

Standard configuration: Main Machine,5 calibration specimens (50mm、100mm、200mm、500mm、

1000mm),Fe or NFe probe, Fe or NFe substrate. Two probes for Leeb222&Leeb232.

Optional Accessories



Coating Thickness Gauge
