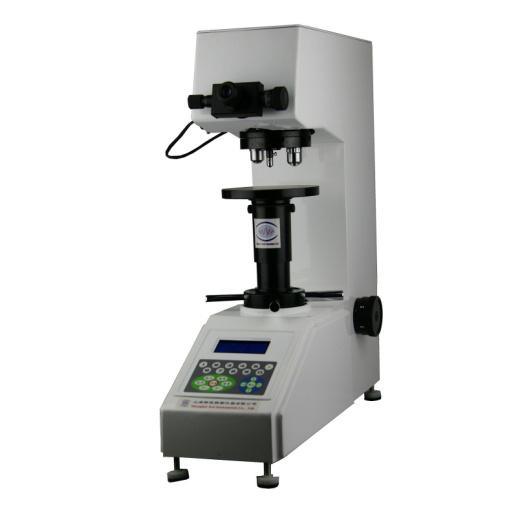

Leeb LHV-50 Vickers hardness tester ( 8HV~2900HV; 50Kgf (490N))

Testing force (Kgf ):  1Kgf (9.8N) ; 5Kgf(49N); 10Kgf (98N); 20Kgf (196N); 30Kgf (294N); 50Kgf (490N)

Min. Test Unit: 0.5µm

Max Height of Specimen: 165mm

Distance from Indenter to Out Wall: 130mm

Hardness Test Range: 8HV~2900HV

Method of Test: Force Applied

Power Souse: AC220V+5%,50-60Hz

Load control: automatic ( loading; dwell;

Overall Dimension: 520X190X650mm

Indication of hardness value: LCD display

Net weight: About 45Kg

Standard supply:

Objective 10x,20x: 2

Eyepiece 10x:1

HV indenter:1

Weight: 3

Testing table: 3

12V20W light bulb: 1

Power cable: 1

2A fuse: 2

Screwdriver and Level vial: 2

Munual and Certificate: 2

Detail

Vickers Hardness tester
