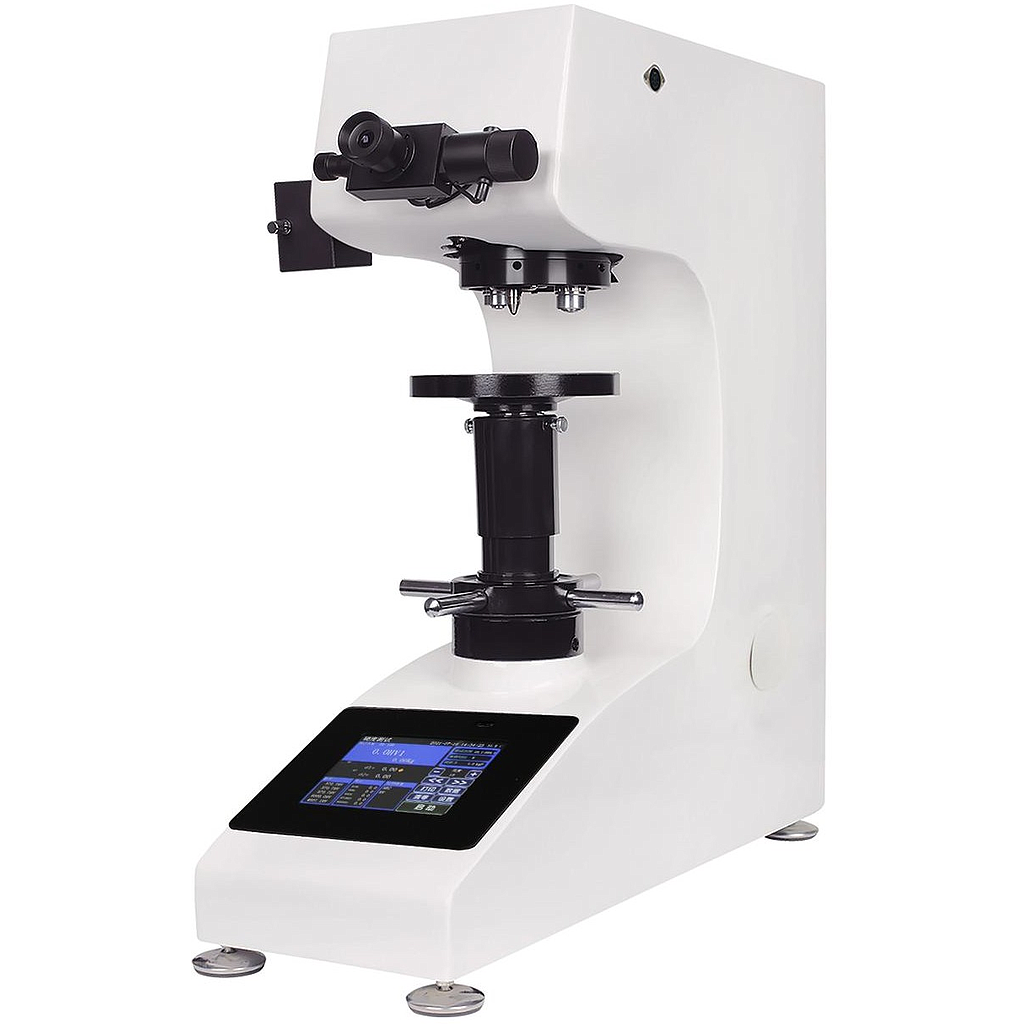

Leeb LHVS- 10DXZ 维氏硬度计

- Test force: LHVS-10DXZ: 0.1、0.2、 0.3、0.5、1.0、2.0、2.5、3.0、5.0、10.0Kgf

- Measuring Range: 8-2900HV

- Conversion Scale: Rockwell, Superficial Rockwell, Brinell

- Indication of Hardness Value: Large LCD screen display

- Min measuring unit: 0.0625µm

- Test microscope magnification: 200X(Measuring),100X(observation)

- Data output: RS232, Built-in Printer

- Load control (force applied): Automatic(Loading, Dwell, Unloading

- Max Height of Specimen: 165mm

- Distance of Indenter to outer wall: 130mm

- Power supply: AC220V+5%,50-60Hz

- Carried Standard: GB/T 4340, ISO 6507, EN ISO 6507, ASTME-384, JJG151

- Net weight: About 48Kg

Standard Accessories

- Objective 10x :  1

- Testing table ( Large, Small, V-shaped): 3

- Objective 20x : 1

- HV Indenter:  1

- Eletric Eyepiece 10x:  1

- 12V20W light bulb: 1

- Rod of Weight: 1

- Power cable & 2A fuse: 2

- Hardness Block: 2

- Paper for thermal printer: 1

- Manual & Certificate: 2

- Screwdriver & Level vial: 2
