Leeb UEE960 超音波测厚仪 (0.75~1000.00mm; 0.01mm)

Measuring range(mm): 0.75~1000.00mm

Frequency (MHz): 0.5~15.0MHz

Resolution(mm): 0.01mm

Accuracy(mm): ± 0.1 mm ( H <10mm)

±(0.5%H+0.01) (H>10mm)

H refers to the thickness of testing piece

Max coating thickness: 1mm

Measuring range (through coating): 2~150mm

Velocity range(m/s): 1000~9999m/s

Type of probe: Double crystal

Storage: 128,000 groups (measuring data);  255 groups( B scan grraph)

Display: 2.4" High-definition color display

Display units: mm & inch

Output port: Mini USB

Operating temperature: -20℃~50℃

Power supply: 3 * AA

Dimensions: 150×75×32(mm)

Weight: 275g

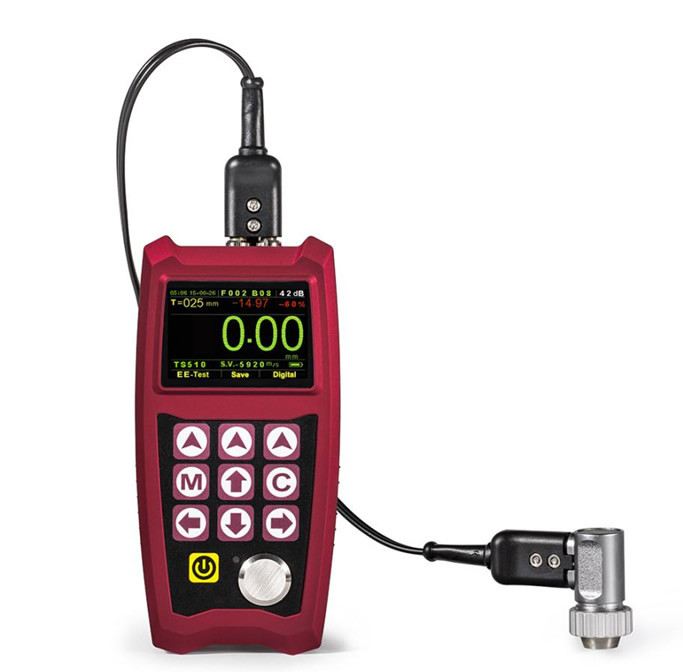

Ultrasonic Thickness Gauge
