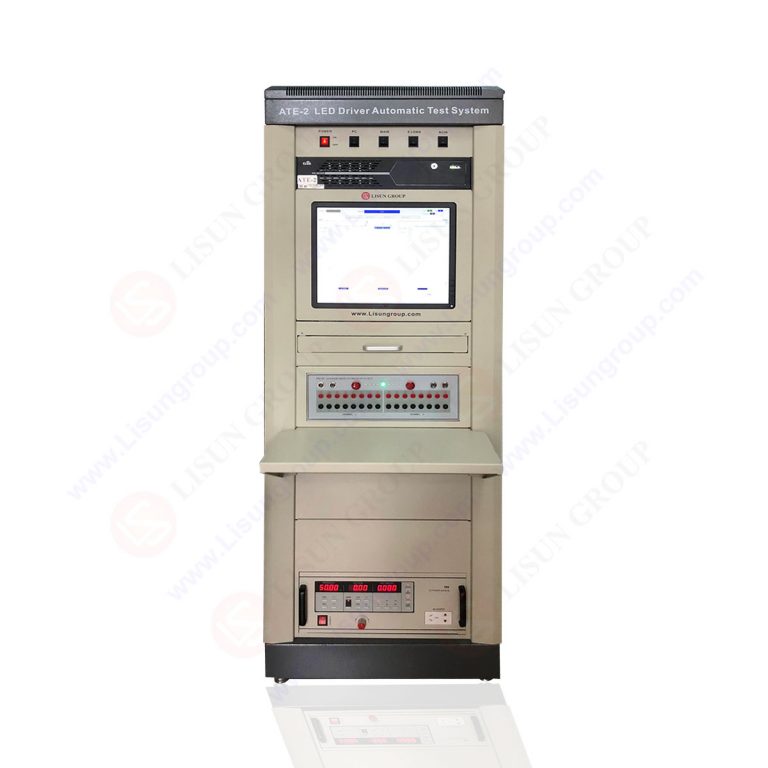

Lisun ATE-2 LED 驱动电源测试系统 (AC300V,2.7A/DC500V, 8A)

Item: Test Range / Tolerance / Test Condition


Voltage

AC: 3~300V (CF=1.67) / ±(0.1%reading+0.1%range+1digit) / 45~65Hz sine-wave Calibration validity: 12 months

DC: 3~500V / ±(0.1%reading+0.1%range+1digit) / 45~65Hz sine-wave Calibration validity: 12 months

Current

AC: 5mA~2.7A (CF=3) / ±(0.1%reading+0.1%range+1digit) / 45~65Hz sine-wave Calibration validity: 12 months

DC: 5mA~8A / ±(0.1%reading+0.1%range+1digit) / 45~65Hz sine-wave Calibration validity: 12 months

Power

AC: 0.015~800W / ±(0.1%reading+0.1%range+1digit) / 45~65Hz sine-wave Calibration validity: 12 months

DC: 0.015~4000W / ±(0.1%reading+0.1%range+1digit) / 45~65Hz sine-wave Calibration validity: 12 months

Power Factor: 0.000~1.000 / ±(0.002+0.001/reading+1digit) / 45~65Hz sine-wave Calibration validity: 12 months

Frequency: 45Hz~65Hz / ±0.1% Reading / 45~65Hz sine-wave Calibration validity: 12 months

Harmonic: Total harmonic and 2-11 times harmonic component / ±(0.1% range+5% Reading)

Surge Current: 50mA~100A / ±(0.5% range+0.5% range+1digit) / Square wave with pulse width greater than 10μs, Calibration validity: 12months

Lamp Voltage:

AC: 3~300V (CF=1.67) / ±(0.1%reading+0.1%range+1digit) / 45~65Hz sine-wave Calibration validity: 12moths

DC: 3~500V / ±(0.1%reading+0.1%range+1digit) / 45~65Hz sine-wave Calibration validity: 12moths

Lamp Current

AC: 5mA~2.7A (CF=3) / ±(0.1%reading+0.1%range+1digit) / 45~65Hz sine-wave Calibration validity: 12moths

DC: 5mA~8A / ±(0.1%reading+0.1%range+1digit) / 45~65Hz sine-wave Calibration validity: 12moths

Lamp Power

AC: 0.015~800W / ±(0.1%reading+0.1%range+1digit) / 45~65Hz sine-wave Calibration validity: 12moths

DC: 0.015~4000W / ±(0.1%reading+0.1%range+1digit) / 45~65Hz sine-wave Calibration validity: 12moths

Ripple Current Max: 5mA~8A ±(1%reading+1%range) 20-70kHz sine-wave
