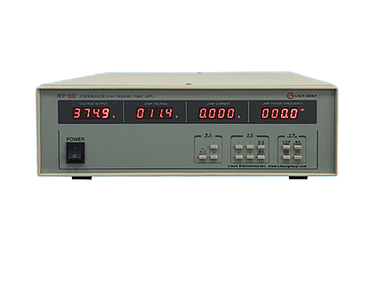

Lisun HFP-800 高频电源(600V,0.6A,25KHz)

The HFP-800 works with LPS-3 (Auxiliary Power Supply) and RB-3 (Adjustable Resistance Ballast) to be an IEC Standard Test System which used to test the Frequency Fluorescent Lamp such as T5 Tube, please click here to learn the more details


Features:

• Program control output voltage and easy operation

• Set data easily with a memory chip, unnecessary to set for many times

• Display on four windows, each window shows one parameter independently

• Application for all kinds fluorescent lamps such as 50Hz/60Hz T8/T12 tube or 25KHz T5 Tube

• It is according to double-ended fluorescent lamps adoptting the IEC 60081 (GB/T10682) and the single-ended fluorescent lamps adoptting the IEC 60901 (GB/T17262)


Specifications:

• Range for output voltage: 10~600V (Adjustable)

• Range for output current: 0~0.600A

• Range for output frequency: 25KHz

• Range for output capacity: 0~300W (Special request to 500W)

• Range for Voltage stability: 0.5%/30 minutes

• Range for frequency stability: 0.02%

Detail

Download datasheet
