• Test current: AC 1~100A;
• The measurement range of pressure drop: 0~199.9±1mv;
• Work power: 220V/50HZ/5A.

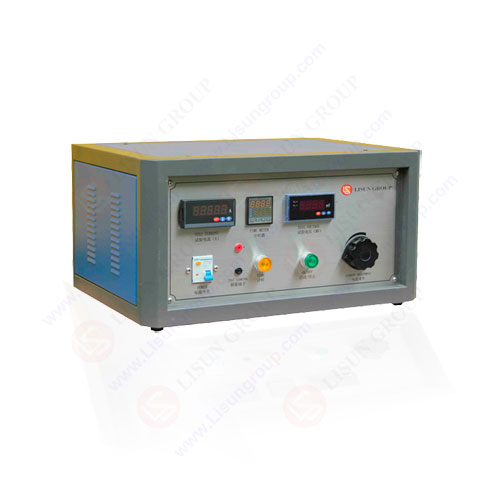

JCY-1 Contact Pressure Drop Test Device meets the requirements of the corresponding clauses of IEC60884, IEC60669, GB2099, and GB16915. It is used to test the contact pressure drop of the non-threaded terminal of the socket, and the terminal of non-removable power plug which after the bending test.
