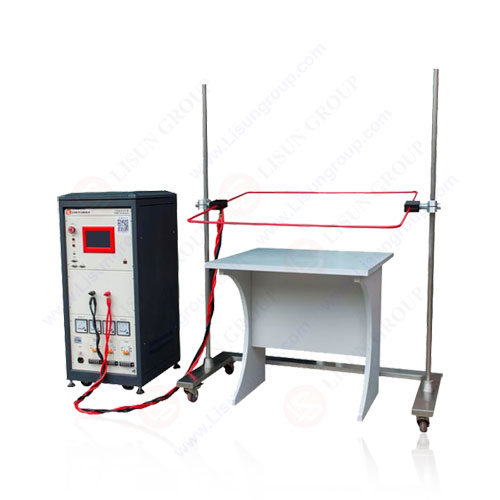

Lisun PFM61000-8A 磁场发生器 (0A/m ~ 1000A/m, AC220V)

• LCD display, built-in computer for controlling, easy to operate.

• Freely set the time of current injection and interval, and the time of test.

• Intelligently acquire current, voltage and magnetic field strength, all the parameters will be showed on the LCD display.

• Magnetic field coil: 1 square meter (others can be customized)

• Magnetic field strength: 0A / m ~ 1000A / m continuously adjustable

• Output Current: AC

• The time of test: 999 times

• Test of interval: 1 ~ 99min

• Current injection time: 1s to 99min

• Current distortion rate: <5%

• Work mode (current range for continuous working): 1A ~ 100A

• Work mode (current range for short-time working): >100A ~ 500A, 1 ~ 5s, >500A ~ 1000A, 1 ~ 3s

• Methods of operation: manual, semi-automatic, automatic

• Power supply: AC220V 50/60Hz

• Working environment temperature: 15°C-35°C
