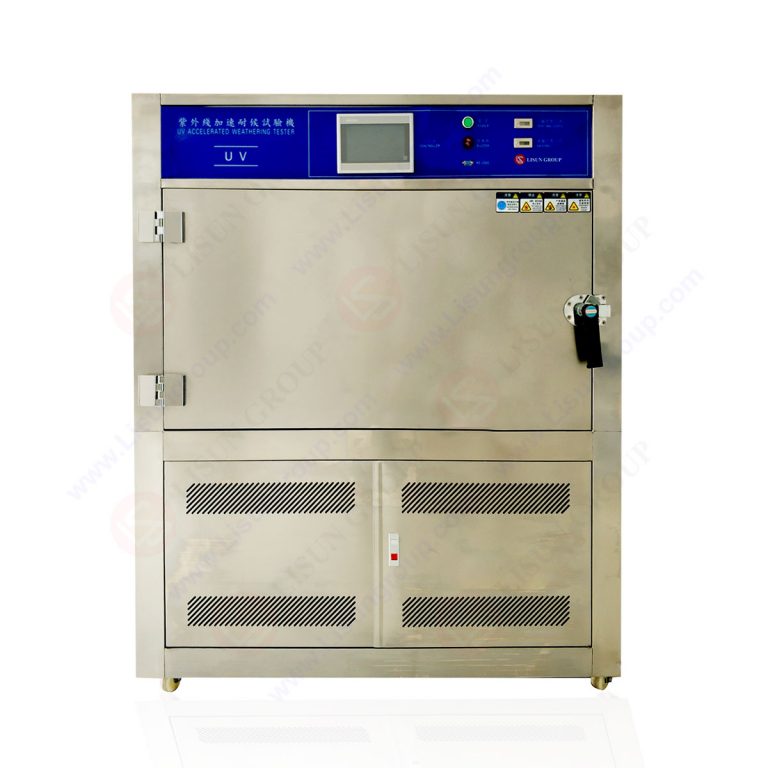

Lisun UV-263LS 紫外老化试验箱 (RT~70℃, ≥90% RH)

• Working room: 1140×640×630mm (L*W*H)

• Outside dimension: 1400×850×1700mm (L*W*H)

• Material (internal & external): 304 SUS stainless steel

• Sample holder: Aluminum alloy frame plate

• Controller: Color touch-screen programmable controller

• Irradiation lamp: UVA-340 8pcs (4pcs on each side, total 2 sides)

• Protecting power supply from circuit overload, short circuit, over-temperature and water shortage by residual-current circuit breaker (RCCB)

• Temperature range: RT+40℃~70℃

• Humidity range: ≥90% RH

• Temperature uniformity: ±1℃

• Temperature fluctuation: ±0.5℃

• Distance between lamps: 70mm

• Distance between sample and lamp: 50±3mm

• Irradiance: 1.0W/m2 adjustable

• Temperature, lighting, condensation, spraying and test cycle are adjustable

• Lamp: L=1200/40W, 8pcs (UVA life ≥2000hrs)

• Way of temperature control: PID + SSR

• Standard size of testing sample: 75×290mm (Special size can be customized)

• Sink depth: 25mm auto control

• Effective irradiation area: 900×210mm

• UV wavelength: UVA range is 315-400nm

• Testing time: 0~999H (adjustable)

• Temperature of irradiation blackboard: 50℃~70℃

• Standard sample holder: 24 inches

• The tester is equipped with automatic spraying function


Working conditions

• Environmental temperature:5℃ ~+32℃

• Environmental humidity:≤85%

• Power:AC220(±10%)V, 50HZ, two phase three wires

• Pre-installed capacity:5kW
