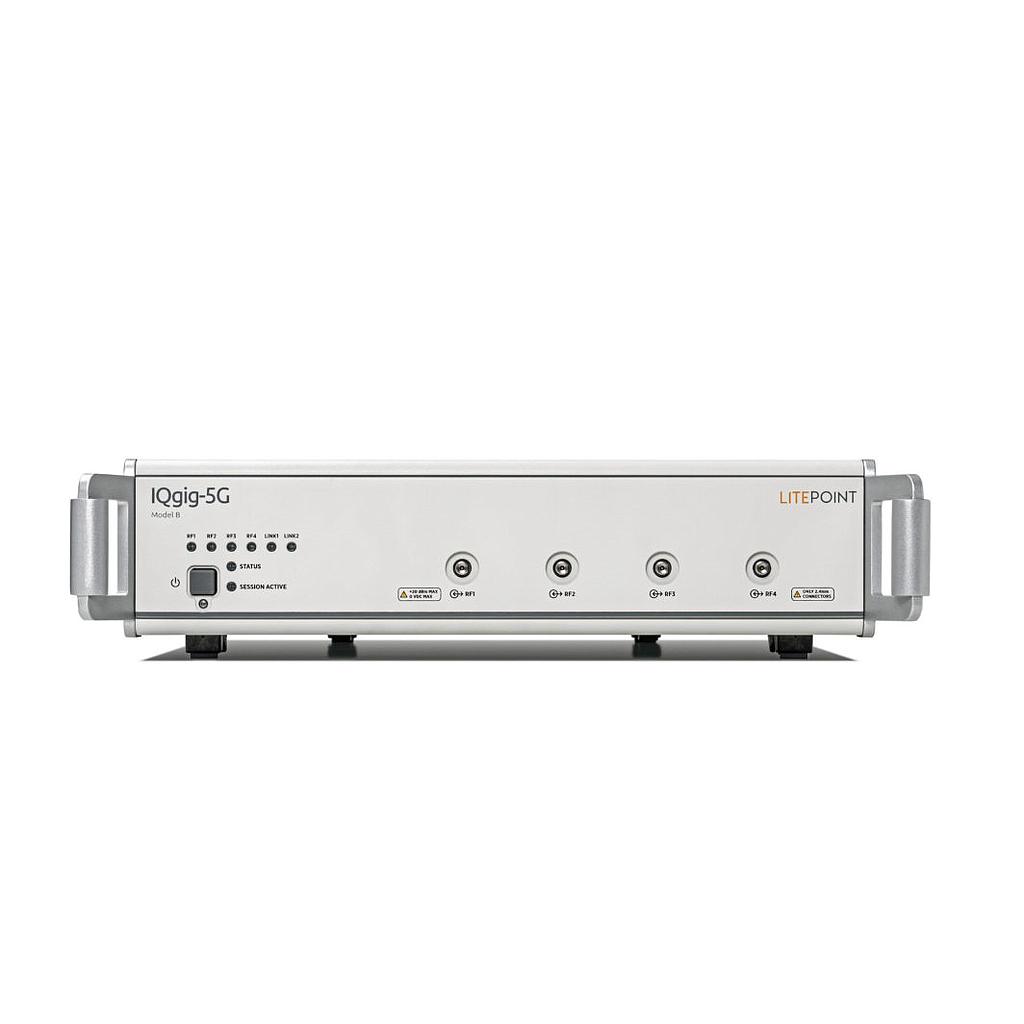

Litepoint IQgig-5G 5G mmWave 测试系统 (2 ports)


Datasheet


Brochure


5G Horn Antenna


5G OTA Test Chamber


5G Dual Polarization Horn Antenna 23-55GHz

IQgig-5G is a fully integrated, versatile multiband mmWave non-signaling test solution, first of its kind to support all 5G FR2 frequencies within a 23-45GHz range.

Its one-box design makes it simple to set up, use, maintain and trust that you will make reliable measurements when characterizing or manufacturing your 5G devices.


Fully Integrated 5G FR2 Millimeter Wave Test System

All signal generation, analysis, processing, and RF front-end switching is self-contained inside a single chassis

Calibrated RF ports enable direct connection for simple text fixture setups

Lab grade performance in compact 2U form factor

Support for wider frequency range with over 1.7GHz of instantaneous bandwidth

On-the-fly, software controlled frequency switching within 23-45GHz range

Optional over-the-air (OTA) test chamber for testing beamforming verification and characterization of DUT mmWave antennas

Ideal for Beamforming Characterization, Beamforming Verification, RF calibration and Antenna Measurements

All-in-one support for RF Calibration, Antenna measurements, Beam forming characterization and Beam verification

Intuitive GUI enables easy setup, custom test flow and optimization

Advanced software application supports leading-edge functions – chamber calibration & control, data collection, analysis and antenna pattern measurements

Multiple bi-directional source and measurement ports, enable multi DUT testing and simultaneous verification of transmit and receive paths

Support for horizontal and vertical antenna polarization using single test setup

Turnkey Solution for Lab and Multi DUT Testing in Manufacturing Environment

Versatile test solution spanning R&D, DVT and manufacturing test environment

Calibration and verification software IQfact5G enables extensive and faster data logging and analysis

Flexible software architecture allows for integration and correlation of measurements results from lab to factory floor

One-box robustness enables a reliable manufacturing solution with minimal maintenance

5G Technology Options

5G 3GPP NR (Release 15)

5G Small Cell

V5GTF (pre-5G)

Spanning R&D, DVT and Manufacturing Test Environment

R&D lab, DVT, Sampling, Production test environments

From chipsets to modules, final product characterization or manufacturing lifecycle stages

For 5G-enabled mmWave mobile or infrastructure devices
