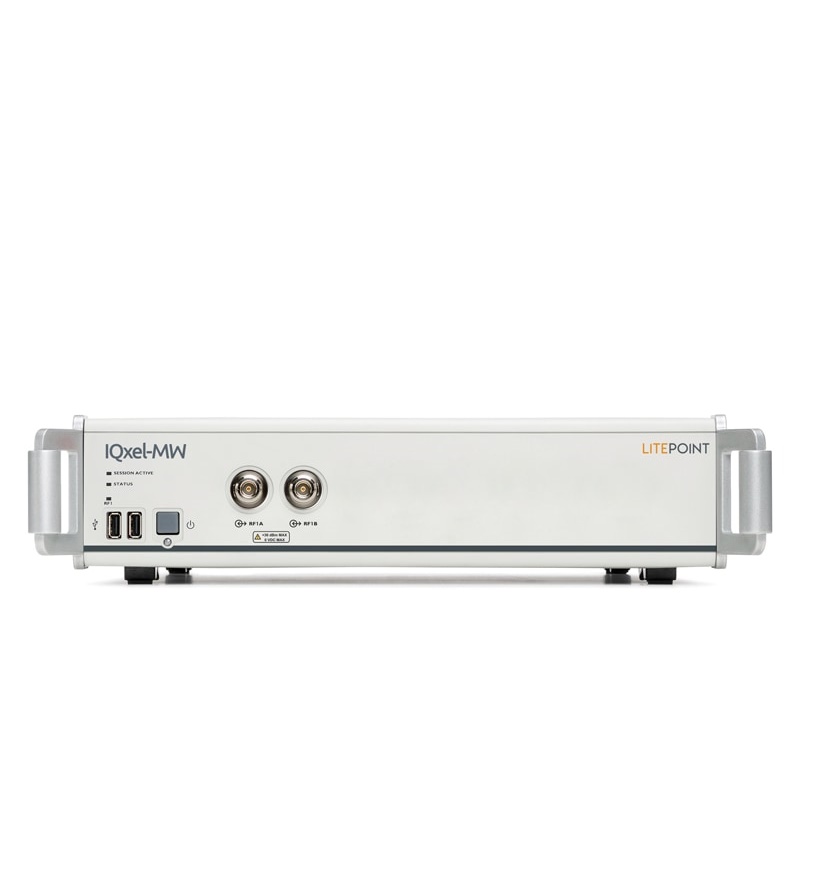

Litepoint IQxel-MW High-performance Test for 160 MHz & 802.11ax Wi-Fi 6 Devices




IQxel-MW™ is a comprehensive, multi-device test solution with superior performance for the next generation of  WLAN and Bluetooth connectivity devices, ideal for both R&D and high-volume production.

The optimized performance ensures that you are truly measuring the device, and not measuring uncertainty in the measurement setup. This enables high test yield and minimal retest on the manufacturing floor.

As 802.11ac (Wi-Fi 5) and 802.11ax (Wi-Fi 6) technologies are adopted by device makers, product requirements are becoming more complicated, leading to complex test setups. IQxel-MW is equipped with new features that simplify production testing and lower production costs. The IQxel-MW series is available in three configurations—2 ports, 8 ports and 16 ports—which support up to 2×2, 4×4 and scalable to 8×8 true MIMO testing.

Designed for the Demanding Requirements of 802.11ax (Wi-Fi 6)

Class-defining residual EVM performance for 1024-QAM

Unrivaled RF port configurability, eliminating the need for external components in the test fixture

Native support for per-port 160 MHz and 80+80 MHz signal combination

Simultaneous dual-band test enabled (2.4 GHz and 5 GHz): ensures performance of TX/TX, TX/RX and RX/RX operating modes

Support for single-user OFDMA, multi-user OFDMA, Uplink and Downlink

Patented Packet Engine™ technology for 802.11ax MU-OFDMA power and timing control verification

Highest Test Throughput for Manufacturing

Industry-leading test speed and efficiency delivered by LitePoint’s patented Packet Engine™ technology

Parallel multi-DUT test architecture lets you independently start and stop testing for each device in the same test station

Re-use existing equipment, preserve your factory setup, and consolidate multiple test stations into one

Jump-Start Your Testing with Chipset Specific Test Solutions

Start testing immediately with IQfact+™ software solutions for leading WLAN and Bluetooth chipsets

Growing library of hundreds of chipset-specific test solutions save setup time and development costs

Fully backward compatible with existing LitePoint connectivity test systems

OFDMA Pre-correction Test Solution for Wi-Fi 6 Certification

Complete solution with IQsniffer (Wi-Fi traffic sniffer) option

Integrated implementation capable of capturing and analyzing complex interactions between Wi-Fi 6 OFDMA participants

Simultaneous analysis at the MAC and RF PHY layers for all users and streams

Simplifies troubleshooting and debugging of Wi-Fi 6 MU-MIMO and OFDMA features

Allows engineers to achieve faster time to market with Wi-Fi 6 compliant devices

Wireless Technology Options (WLAN, Bluetooth, LPWAN, Cellular)

Wi-Fi, 802.11ax (Wi-Fi 6)

Wi-Fi, 802.11ac Wave 1 and Wave 2 (Wi-Fi 5)

Wi-Fi, 802.11a/b/g/j/n/p

Wi-Fi, 802.11af/ah

Bluetooth, Classic/EDR (1-4.x), Low Energy (4.0, 4.1, 4.2)

Bluetooth 5 and Bluetooth 5.1

Scalable to 8×8 true MIMO

Zigbee, Z-Wave and Wi-SUN



LPWAN, Sigfox / LoRa

Navigation: GPS, GLONASS, Compass and Galileo

When & Where to Use the IQxel-MW for Testing?

In lab and manufacturing environments

For products in the product characterization, PCB-level manufacturing or RF modules lifecycle stages

For high-performance 802.11ax-enabled networking, computing, mobile or gaming devices
